Electric position indicator with sensor
| Material: |
Body parts: stainless steel Gaskets: EPDM acc. to KTW-BWGL for water |
|---|---|
| Max. operating Pressure: | Potable water: 25 bar |
| Medium | Water |

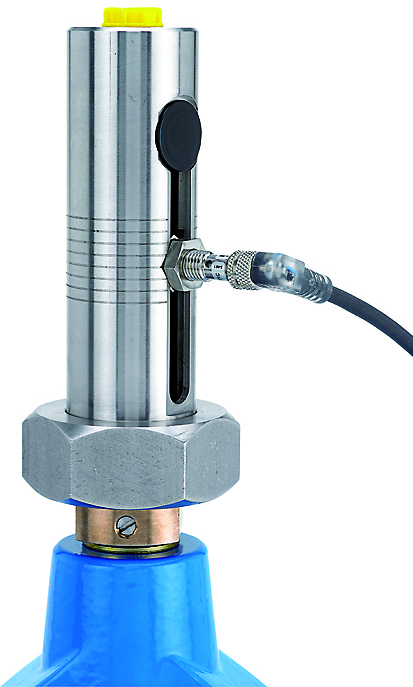

The electric position indicator is mounted on the central outlet of the valve cap. The indicator spindle of the position indicator has to be connected to the spindle of the main valve.
The sensor can be positioned in each desired position (open or closed position). By means of this sensor electric signals regarding the position of the valve can be transmitted.
Combination with opening limiter possible (on request).
Position indicators can be retrofit on all Hawle control valves.
|
Order Nr.
|
*) |
Operating pressure max. |
H |
Suitable for |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|
|
119980050
|
1) | Potable water: 25 bar | 138 mm | DN 1 1/2" - DN 50 | 1,00 kg | |||
|
119980100
|
1) | Potable water: 25 bar | 138 mm | DN 65 - DN 100 | 1,00 kg | |||
|
119980200
|
1) | Potable water: 25 bar | 164 mm | DN 125 - DN 200 | 1,20 kg | |||
|
119980250
|
1) | Potable water: 25 bar | 180 mm | DN 250 | 1,40 kg | |||
|
119980300
|
1) | Potable water: 25 bar | 180 mm | DN 300 | 1,40 kg | |||
|
119990050
|
2) | Potable water: 25 bar | 138 mm | 0,00 kg | ||||
|
119990100
|
2) | Potable water: 25 bar | 138 mm | 0,40 kg | ||||
|
119990200
|
2) | Potable water: 25 bar | 164 mm | 1,40 kg | ||||
|
119990250
|
2) | Potable water: 25 bar | 180 mm | 0,00 kg | ||||
|
119990300
|
2) | Potable water: 25 bar | 180 mm | 0,00 kg |
-
Version with 2 sensors on request.
|
Further information
|
|---|
| General instruction for Control Valves & Strainers |
|
Operating instructions
|
|---|
| Operating and maintenance instructions - Electric position indicator with sensor |
