013-07
Opening limiter
| Material: |
Body parts: stainless steel Gaskets: EPDM acc. to KTW-BWGL for water |
|---|---|
| Max. operating Pressure: | Potable water: 25 bar |
| Medium | Water |

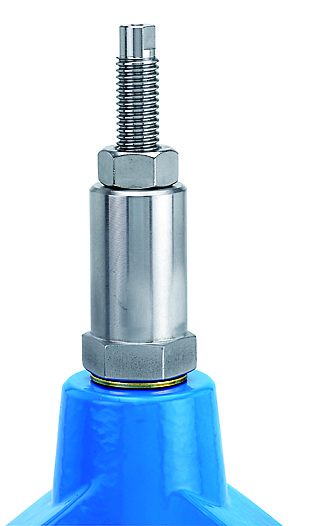

The opening limiter is screwed onto the central bore of the valve cap. By means of the adjusting screw the stroke of the valve spindle can be limited. Caution: this may be done only in unpressurized condition!
Use:
To limit the flow at constant pressure conditions!
Opening limiters can be retrofit on all Hawle control valves.
|
Order Nr.
|
DN |
Operating pressure max. |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|
|
130000100
|
40-100 | 25 bar | 0,33 kg | |||
|
130000105
|
125-200 | 25 bar | 0,50 kg |
|
Further information
|
|---|
| General instruction for Control Valves & Strainers |
|
Operating instructions
|
|---|
| Operating and maintenance instructions - Opening limiter |
