Pressure retention valve with float control

Description:
The pressure retention valve with float control opens at low water level considering the preset retention pressure. The main valve closes as soon as the max. water level in the tank is reached. The retention pressure is infinitely adjustable via the pilot valve between 1,5 - 12 bar. To avoid water hammers, the closing rate can be adjusted via the throttle check valve. The difference between minimum and maximum water level can be adjusted between 60 and 900 mm via the stops at the float rod.

Minimum inlet pressure: 1 bar
Minimum pressure difference between inlet and outlet pressure: 1 bar

For rating, please specify the following:
- Flow (max.)
- Inlet pressure (P1 side)
- Retention pressure and/or relieving pressure (P2 side)
- Holding pressure / back pressure
- Difference between min. and max. tank level

Components:

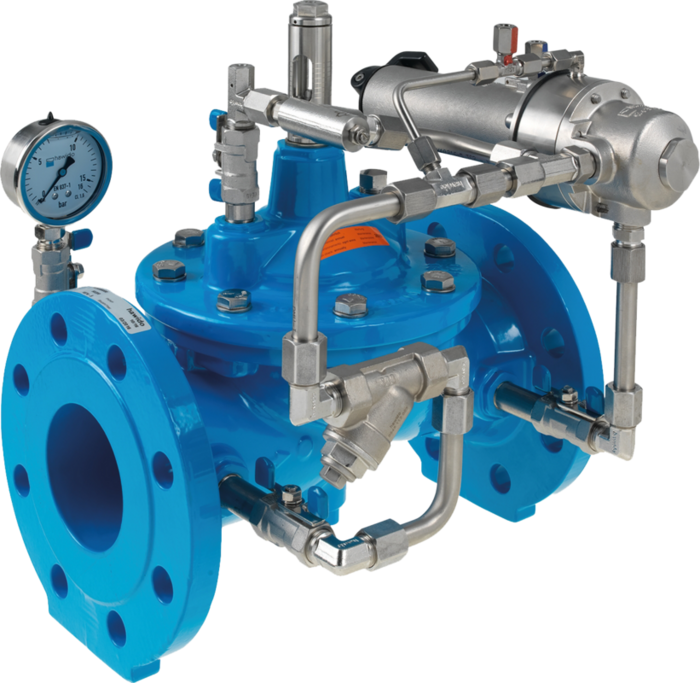

1: main valve
2: ball valve (A, B)
3: filter
4: orifice
5: throttle check valve
6: pilot valve
7: manometer with ball valve
8: optical position indicator with vent plug (option: electric position indicator, opening limiter)
9: float control valve

read more reduce
Material: Body Parts: GJS-400, Hawle epoxy powder coated
Control line: stainless steel
Diaphragms, gaskets: EPDM acc. to KTW-BWGL for water
Pilot valve: stainless steel
Float control valve: stainless steel
Max. operating Pressure: See table
Medium Water

Description:
The pressure retention valve with float control opens at low water level considering the preset retention pressure. The main valve closes as soon as the max. water level in the tank is reached. The retention pressure is infinitely adjustable via the pilot valve between 1,5 - 12 bar. To avoid water hammers, the closing rate can be adjusted via the throttle check valve. The difference between minimum and maximum water level can be adjusted between 60 and 900 mm via the stops at the float rod.

Minimum inlet pressure: 1 bar
Minimum pressure difference between inlet and outlet pressure: 1 bar

For rating, please specify the following:
- Flow (max.)
- Inlet pressure (P1 side)
- Retention pressure and/or relieving pressure (P2 side)
- Holding pressure / back pressure
- Difference between min. and max. tank level

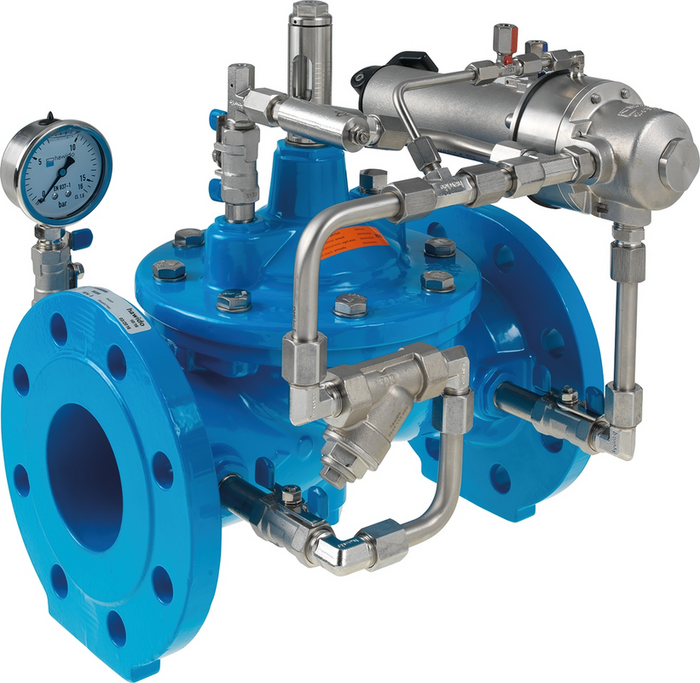

Components:
1: main valve
2: ball valve (A, B)
3: filter
4: orifice
5: throttle check valve
6: pilot valve
7: manometer with ball valve
8: optical position indicator with vent plug (option: electric position indicator, opening limiter)
9: float control valve

Contacts
Wish List
Order Nr.
*)
DN
Operating pressure max.
PN
L
Medium Weight Specification Basket
140600400
   IG 1 1/2" Potable water: 16 bar 10/16 210 mm 11,50 kg
140600410
   IG 2" Potable water: 16 bar 10/16 210 mm 11,50 kg
140604010
   40 Potable water: 16 bar 10/16 200 mm 13,00 kg
140605010
 1) 50 Potable water: 16 bar 10/16 230 mm 16,00 kg
140606510
   65 Potable water: 16 bar 10/16 290 mm 21,00 kg
140608010
 1) 80 Potable water: 16 bar 10/16 310 mm 27,00 kg
140610010
 1) 100 Potable water: 16 bar 10/16 350 mm 35,00 kg
140612510
   125 Potable water: 16 bar 10/16 400 mm 52,00 kg
140615010
 1) 150 Potable water: 16 bar 10/16 480 mm 61,00 kg
140620010
   200 Potable water: 10 bar 10 600 mm 114,00 kg
140620020
   200 Potable water: 16 bar 16 600 mm 114,00 kg
140625010
   250 Potable water: 10 bar 10 730 mm 250,00 kg
140625020
   250 Potable water: 16 bar 16 730 mm 250,00 kg
140630010
   300 Potable water: 10 bar 10 850 mm 362,00 kg
140630020
   300 Potable water: 16 bar 16 850 mm 362,00 kg
Wish List
1)
Also available as angled type, product numbers on request.

PN 25 on request (up to DN 200)
