Order Nr.
|
d 4 |
d 1 |
Cover inscription |
d 2 |
Description |
d 3 |
h1 |
Medium | Weight | Specification | Basket |
---|---|---|---|---|---|---|---|---|---|---|---|
1800020000
|
95 mm | W | cover | 1,40 kg | |||||||
1800030000
|

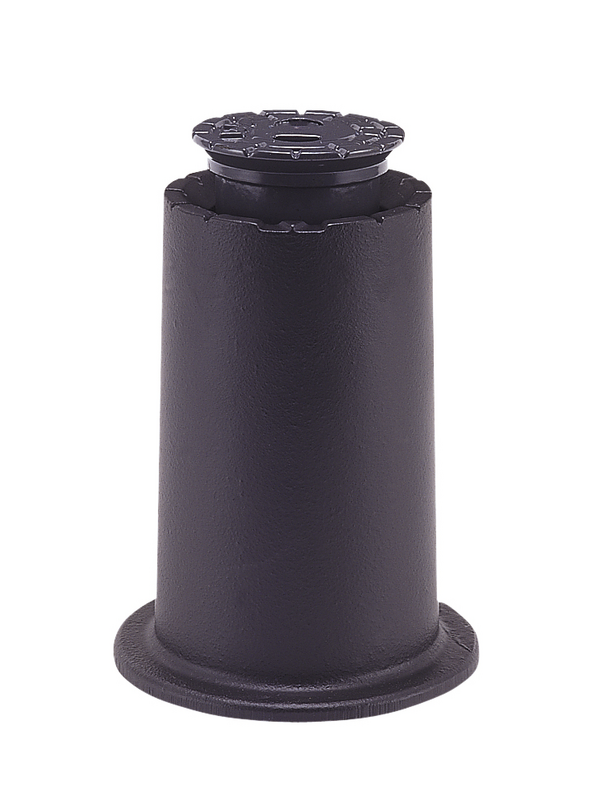

170 mm | W | 82 mm | complete surface box | 120 mm | 220 mm | 7,00 kg |
Further information
|
---|
General instruction for Special Valves, Surface Boxes |
Operating instructions
|
---|
Operating and maintenance instructions for Surface box for valves/gate valves rigid version |
Brochures
|
---|
Brochure - Hawle Product Range |
Article Nr.
|
Product description |
---|---|
181-00 | Extension ring for valve surface box model no. 180 and/or height increase of conversion ring model no. 182 |
204-00 | Universal base plate for surface boxes for gate valves and valves |
204-03 | Insert for concrete base plate |
