- 1)

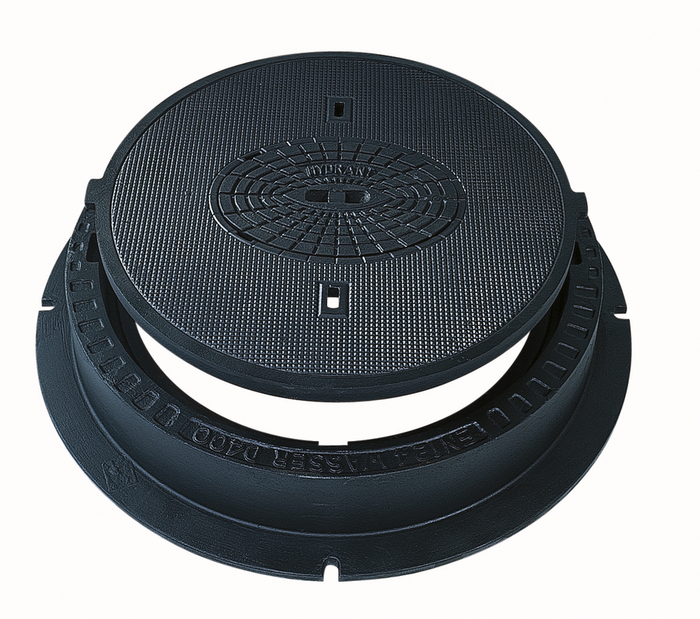

- Manhole cover with integrated hydrant cover for Combi valve. A damper ring between lit and frame prevents contact corrosion and ensures light detachability.
205-00
Manhole cover
| Material: |
Frame/cover: GJS 400/500, primed and lacquered Absorber ring: polychloroprene |
|---|---|
| Medium | Water / Sewage |
The manhole cover order no. 205-00 is suitable for installation in paved traffic areas.
There are 3 variants:
Order No. 2050000005:
for combi fittings according to the Württemberg shaft system. To operate the built-in fittings for gate valves, the manhole cover must be opened. If only the hydrant is to be operated, it is sufficient to open the integrated hydrant cover. The hydrant cover is connected to the manhole cover by a retaining pin with cotter pin and washer.
Order No. 2050000004:
for ventilation set (order no. 985-00), with the inscription “HAWLE ABWASSER BE- UND ENTLÜFTUNG”.
Order No. 2050000006:
for combi fittings according to the Württemberg shaft system with neutral labelling "WASSER". To operate the installation sets, the manhole cover must be opened.
|
Order Nr.
|
*) |
Description |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|
|
2050000004
|
Manhole cover "Air valve set 985" | 177,00 kg | ||||
|
2050000005
|
1) | Manhole cover "hydrant" | 177,00 kg | |||
|
2050000006
|
Shaft cover neutral ‘water’ | 176,00 kg |
|
Further information
|
|---|
| General instruction for Surface boxes / Manhole cover |
|
Brochures
|
|---|
| Brochure Hawle Product Range |
|
Article Nr.
|
Product description |
|---|---|
| 204-09 | Concrete base plate for manhole cover model no. 205-00, 205-02 |
