205-01

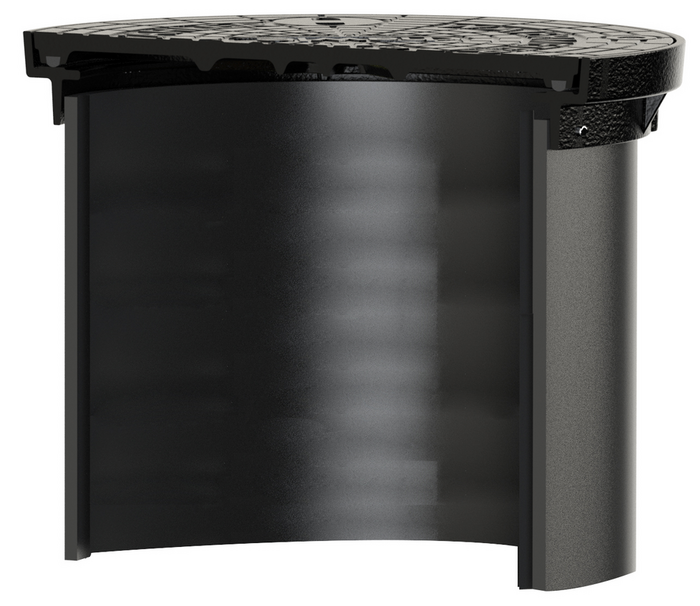

Manhole cover for Hawle water meter chamber 2.0
| Material: |
Cover/frame: GJS-400 or PE manhole cover: PE |
|---|---|
| Medium | Water |
The manhole cover (order no. 205-01) serves as a cover for the Hawle water meter shaft 2.0.
The manhole cover for the Hawle water meter shaft 2.0 (order no. 205-01) is available in the variants B 125 cast iron version or A 15 cast iron or PE version in accordance with EN 124-1.
For the B125 cast iron and A15 cast iron variants, the bearing plate order no. 205-10 must be used.
A15: Areas that can only be used by pedestrians and cyclists.
B 125: Sidewalks, pedestrian zones and similar areas, car parking areas or parking decks.
With the telescopic tube attached to the frame, the manhole cover of all variants of the manhole cover can be adjusted by 0 - 30 cm during installation at the water meter shaft to adjust the pipe cover.
The integrated damping ring on the lid prevents contact corrosion between the lid and the frame on the one hand and ensures that the lid can be easily removed on the other. A special support plate (Order No. 204-10) has been developed for safe load transfer.
|
Order Nr.
|
d 1 |
d 2 |
Type / Outlet |
H |
Description |
Extensions |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
2059000000
|
585 mm | 500 mm | A 15 (Material: Iron cast) | 455 mm | Wasserzähler - Water meter | 300 mm | 51,00 kg | |||
|
2059000015
|
585 mm | 500 mm | A 15 (Material: Iron cast) | 455 mm | Wasserzähler - Watermeter | 300 mm | 39,20 kg | |||
|
2059000515
|
635 mm | 530 mm | A 15 (Material: PE) | 435 mm | Wasserzähler - Watermeter | 300 mm | 13,00 kg |
|
Further information
|
|---|
| General instruction for Surface boxes / Manhole cover |
|
Article Nr.
|
Product description |
|---|---|
| 204-10 | Base plate for manhole cover of Hawle water meter chamber |
