- The absorber ring prevents contact corrosion between the hydrant lid and the manhole cover, on the one hand, and ensures easy loosening of the lid.
205-02

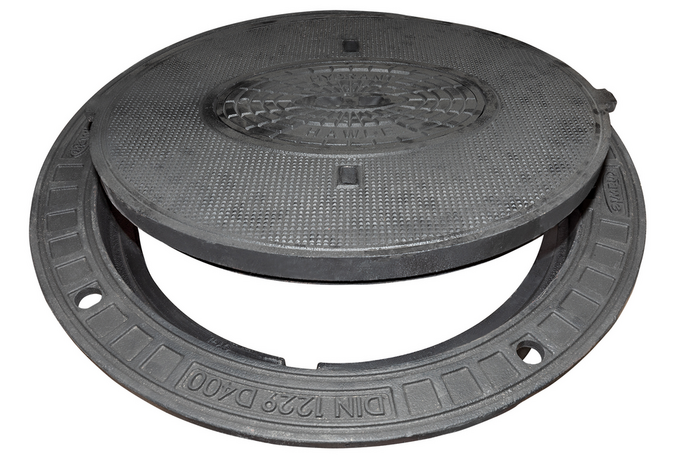

Manhole cover VE for rolling in
| Material: |
Manhole ring and lid: GJS-400 black Locking pin: stainless steel Absorber ring: polychloroprene |
|---|---|
| Medium | Water / Sewage |
The manhole cover Ord. No. 205-02 is suitable for installation in paved traffic areas.
During rolling in, a bond is created between the drawing ring and the asphalt layer. Thus, the traffic load is discharged into the base layer. This bond ensures that the surface box remains level with the road surface.
The absorber ring prevents contact corrosion between the lid and the box, on the one hand, and ensures easy loosening of the lid as well as a reduced rattling tendency of the latter, on the other hand.
Variants for road construction and renovation:
- For Combi valves: Order no. 205 100 0005 (new construction) / Order no. 205 110 0005 (renovation) with the inscription “HYDRANT”.
The integrated hydrant cover is connected to the manhole cover via a retaining pin with a split pin and washer.
- For venting and de-aeration fittings (Order No. 985-00) Order No. 205 100 0004 New construction / Order No. 205 110 0004 Renovation with the inscription “HAWLE ABWASSER BE- UND
ENTLÜFTUNG”
- For universal use Order No. 205 100 0006 New build / Order No. 205 110 0004 Refurbishment with inscription “Wasser”
|
Order Nr.
|
*) |
d 1 |
H |
Picture Nr. |
D � |
Description |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
2051000004
|
706 mm | 210 mm | 1 | 860 mm | 164,45 kg | |||||
|
2051000005
|
1) | 706 mm | 210 mm | 1 | 860 mm | 160,45 kg | ||||
|
2051000006
|
1) | 706 mm | 210 mm | 2 | 860 mm | Manhole cover "Universal" | 0,00 kg | |||
|
2051100004
|
706 mm | 170 mm | 1 | 860 mm | 0,00 kg | |||||
|
2051100005
|
1) | 706 mm | 170 mm | 1 | 860 mm | 189,00 kg | ||||
|
2051100006
|
1) | 706 mm | 170 mm | 2 | 860000 mm | Manhole cover "Universal" - Renovation | 0,00 kg |
|
