235-00G

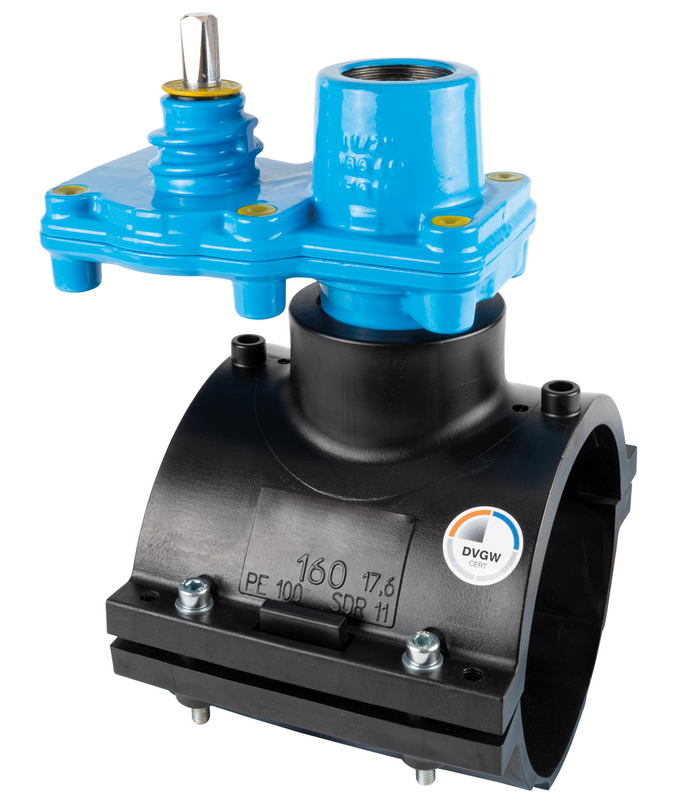

Hawlinger with upper vertical female thread outlet
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle, shut-off device, shut-off blade: stainless steel Gaskets: NBR for gas Electrofusion saddle HA-WELD: PE 100 |
|---|---|
| Max. operating Pressure: | Gas: 5 bar |
| Medium | Gas |
Hawlingers with HA-WELD® welding saddles are to be used for welding on PE pipes DIN EN 1555 PE 80/100.
The upper internal thread outlet according to DIN ISO 228-1 is used in combination with fittings for the connection of house connection cables.
With all Hawle Hawlinger® tapping fittings, the shut-off is provided by a gate-driven plug-in disc made of stainless steel. The plug-in washer is moved horizontally in a housing with low wear and tear against fixed, metallic stops.
To open or close the passageway, only a half-turn (180°) is required.
In combination with a gas-suitable tapping device, the shut-off system enables simple, problem-free drilling of the main line, even in operating condition.
|
Order Nr.
|
Operating pressure max. |
Description |
L |
L1 |
B |
D |
H1 |
Borehole max. |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2350630325
|
Gas: 5 bar | 170 mm | 68 mm | 105 mm | 63 mm | 140 mm | 24 mm | female thread 1" | 3,80 kg | ||||
|
2351100505
|
Gas: 5 bar | 215 mm | 82 mm | 170 mm | 110 mm | 145 mm | 36 mm | female thread 1 1/2" | 7,40 kg | ||||
|
2351600505
|
Gas: 5 bar | 220 mm | 82 mm | 230 mm | 160 mm | 160 mm | 36 mm | female thread 1 1/2" | 7,90 kg | ||||
|
2352250505
|
Gas: 5 bar | 220 mm | 82 mm | 255 mm | 225 mm | 150 mm | 36 mm | female thread 1 1/2" | 8,40 kg | ||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
|
