235-02G

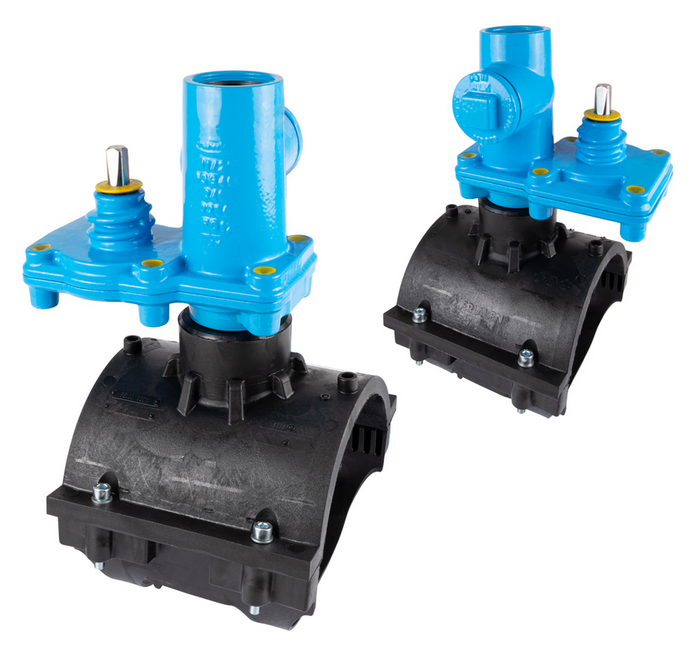

Hawlinger with upper horizontal female thread outlet 90° to pipe direction and lower electrofusion saddle
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle, shut-off device, shut-off blade: stainless steel Gaskets: NBR for gas Electrofusion saddle HA-WELD: PE 100 |
|---|---|
| Max. operating Pressure: | Gas: 5 bar |
| Medium | Gas |
Hawlingers with HA-WELD® electrofusion saddles are to be used for welding onto PE pipes acc. to DIN EN 1555 PE 80/100.
In combination with fittings, the upper female thread outlets serve to connect service lines.
All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.
To open or close the outlet area only one half revolution (180°) is required.
In combination with a tapping device suitable for gas, the shut-off system enables simple, problem-free tapping of the main pipe, even when in operation.
|
Order Nr.
|
L |
L1 |
B |
D |
H1 |
Borehole max. |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
2350630345
|
170 mm | 68 mm | 105 mm | 63 mm | 205 mm | 24 mm | female thread 1" | 5,20 kg | |||
|
2351100525
|
220 mm | 82 mm | 170 mm | 110 mm | 225 mm | 36 mm | female thread 1 1/2" | 7,70 kg | |||
|
2351600525
|
220 mm | 82 mm | 230 mm | 160 mm | 230 mm | 36 mm | female thread 1 1/2" | 8,20 kg |
