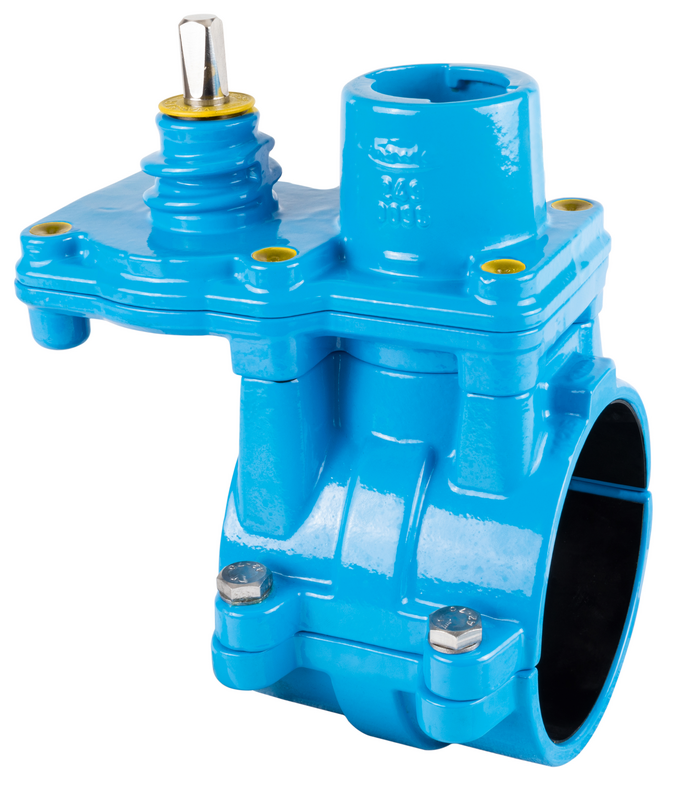

HAKU Hawlinger with vertical ZAK® joint

HAKU Hawlingers in gas version are to be used for installation on PVC pipes in accordance with DIN EN 8062. The two half-shells are precisely calibrated to their respective outer diameters. An inadmissible deformation of the tube is prevented by the metallic stops when connecting the half-shells.

The vertical ZAK® joint outlet is used in combination with ZAK® tip end fittings for connecting house connection pipes.

With all Hawle Hawlinger® tapping fittings, the shut-off is provided by a gate-driven plug-in disc made of stainless steel. The plug-in washer is moved horizontally in a housing with low wear and tear against fixed, metallic stops.

To open or close the passageway, only a half-turn (180°) is required.

In combination with a tapping device suitable for gas, the shut-off system enables easy drilling of a pipeline.

The half-shells are fastened with hexagonal screws or screwless via locking wedges (d63 only).
The locking wedges are secured by safety plates.

Spindle square: 12.3 mm

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device,
shut-off blade: stainless steel
Gaskets: NBR for gasket
Max. operating Pressure: Gas: 1 bar (only PVC)
Medium Gas

HAKU Hawlingers in gas version are to be used for installation on PVC pipes in accordance with DIN EN 8062. The two half-shells are precisely calibrated to their respective outer diameters. An inadmissible deformation of the tube is prevented by the metallic stops when connecting the half-shells.

The vertical ZAK® joint outlet is used in combination with ZAK® tip end fittings for connecting house connection pipes.

With all Hawle Hawlinger® tapping fittings, the shut-off is provided by a gate-driven plug-in disc made of stainless steel. The plug-in washer is moved horizontally in a housing with low wear and tear against fixed, metallic stops.

To open or close the passageway, only a half-turn (180°) is required.

In combination with a tapping device suitable for gas, the shut-off system enables easy drilling of a pipeline.

The half-shells are fastened with hexagonal screws or screwless via locking wedges (d63 only).
The locking wedges are secured by safety plates.

Spindle square: 12.3 mm

Contacts
Wish List
Order Nr.
*)
Operating pressure max.
L

B
D
H
Square of spindle
Borehole max.
For type of pipe
Outlet O
 Medium Weight Specification Basket
2360633205
 1) Gas: 1 bar (only PVC) 177 mm 142 mm 63 mm 206 mm 12,3 mm 24 mm PE|PVC ZAK 34 6,30 kg
2360903205
   Gas: 1 bar (only PVC) 175 mm 151 mm 90 mm 234 mm 12,3 mm 24 mm PE|PVC ZAK 34 6,40 kg
2360905005
   Gas: 1 bar (only PVC) 205 mm 171 mm 90 mm 229 mm 12,3 mm 36 mm PE|PVC ZAK 46 7,80 kg
2361103205
   Gas: 1 bar (only PVC) 175 mm 170 mm 110 mm 254 mm 12,3 mm 24 mm PE|PVC ZAK 34 7,70 kg
2361105005
   Gas: 1 bar (only PVC) 205 mm 170 mm 110 mm 251 mm 12,3 mm 36 mm PE|PVC ZAK 46 8,20 kg
2361255005
   Gas: 1 bar (only PVC) 205 mm 190 mm 125 mm 272 mm 12,3 mm 36 mm PE|PVC ZAK 46 9,00 kg
2361405005
   Gas: 1 bar (only PVC) 205 mm 205 mm 140 mm 284 mm 12,3 mm 36 mm PE|PVC ZAK 46 9,20 kg
2361603205
   Gas: 1 bar (only PVC) 175 mm 230 mm 160 mm 306 mm 12,3 mm 24 mm PE|PVC ZAK 34 8,25 kg
2361605005
   Gas: 1 bar (only PVC) 205 mm 230 mm 160 mm 305 mm 12,3 mm 36 mm PE|PVC ZAK 46 9,80 kg
2361805005
   Gas: 1 bar (only PVC) 205 mm 250 mm 180 mm 330 mm 12,3 mm 36 mm PE|PVC ZAK 46 10,20 kg
2362255005
   Gas: 1 bar (only PVC) 205 mm 301 mm 225 mm 381 mm 12,3 mm 36 mm PE|PVC ZAK 46 13,10 kg
Wish List
1)
The saddle halves are mounted by means of a wedge lock (no bolts). The wedge lock is secured by means of a locking plate.
