310-00G

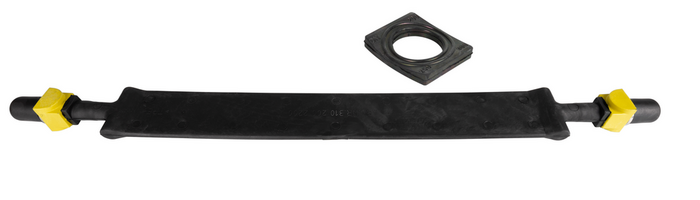

Hawle strap - fully vulcanized

Hawle brackets (fully vulcanized) are used for the safe and ground-free installation of tapping and slide clamps on cast iron pipes and steel PE ZMU pipes (see table).

The particularly wide support of 70 mm ensures minimal surface pressure on the pipe (DIN 3543-2:1984, which has since been withdrawn, provided for a support width of 50 mm for steel and cast iron pipes).

The saddle seal supplied compensates for the respective tube diameter to the tapping clamp and thus reliably seals the drilling.
Note on double stirrup clamps: Two stirrups (retaining pieces) and a special saddle seal are always necessary - please specify when ordering!

read more reduce
Material: Strap plate: stainless steel fully vulcanized
Threaded pin: stainless steel
Nuts: stainless steel
Gripping jaws: glass fibre reinforced polyamide
Saddle gasket: NBR for gas
Medium Gas

Hawle brackets (fully vulcanized) are used for the safe and ground-free installation of tapping and slide clamps on cast iron pipes and steel PE ZMU pipes (see table).

The particularly wide support of 70 mm ensures minimal surface pressure on the pipe (DIN 3543-2:1984, which has since been withdrawn, provided for a support width of 50 mm for steel and cast iron pipes).

The saddle seal supplied compensates for the respective tube diameter to the tapping clamp and thus reliably seals the drilling.
Note on double stirrup clamps: Two stirrups (retaining pieces) and a special saddle seal are always necessary - please specify when ordering!

Contacts
Wish List
Order Nr.

Steel
Cast Iron
CI - PE
Steel-PE
Steel-PE-FZM
D
ZMU
 Medium Weight Specification Basket
3100800871
 80         87 - 92 mm   1,16 kg
3100800961
   80 80     95 - 103 mm   0,92 kg
3100800981
     80     96 - 103 mm   1,18 kg
3100801091
 100         104 - 114 mm 80 1,26 kg
3101001151
 100 100   100   112 - 120 mm   1,28 kg
3101001191
     100     117 - 125 mm   1,28 kg
3101001251
         100 123 - 133 mm 100 1,34 kg
3101251441
 125   125 125 100 139 - 150 mm   1,40 kg
3101251491
 150       125 149 - 162 mm 125 1,47 kg
3101501691
 150 150   150 125 165 - 173 mm   1,48 kg
3101501721
     150 150   172 - 180 mm 150 1,48 kg
3101501871
         150 178 - 187 mm 150 1,25 kg
3102002201
 200 200   200   217 - 225 mm   1,60 kg
3102002281
           228 - 235 mm 200 1,68 kg
3102002391
         200 239 - 247 mm   1,75 kg
3102502721
 250 250 250 250   272 - 280 mm   1,85 kg
3102502901
         250 290 - 300 mm   1,94 kg
3103003251
 300 300 300 300   325 - 333 mm   2,00 kg
3103003401
         300 340 - 350 mm 300 2,10 kg
3103503691
   350     350 369 - 380 mm   2,20 kg
3104004221
   400 400   400 422 - 435 mm   2,40 kg
3104004651
           465 - 470 mm   2,52 kg
Wish List

The application ranges (DN) specified in the table as a function of the kind of pipe and the pipe outside diameter are only intended as assistance. Prior to ordering, the actual outside diameter of the pipeline should be checked.
