Hawle strap - stainless steel

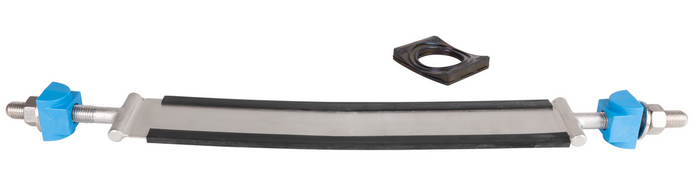

Hawle brackets (stock no. 311-00) are used for the safe installation of tapping and slide clamps on cast iron and steel pipes (see table).

The particularly wide support of 60 mm ensures the lowest surface pressure on the pipe (DIN 3543-2:1984, which has since been withdrawn, provided for a support width of 50 mm for steel and cast iron pipes).

The saddle seal supplied compensates for the respective tube diameter to the tapping clamp and thus reliably seals the drilling.
Note on double stirrup clamps: Two stirrups (retaining pieces) and a special saddle seal are always necessary - please specify when ordering!

read more reduce
Material: Strap plate: stainless steel with rubber pad
Threaded pin: stainless steel
Nuts: DIN 934 - stainless steel
Gripping jaws: glass fibre reinforced polyamide
Saddle gasket: EPDM acc. to KTW-BWGL for water
Medium Water / Sewage

Hawle brackets (stock no. 311-00) are used for the safe installation of tapping and slide clamps on cast iron and steel pipes (see table).

The particularly wide support of 60 mm ensures the lowest surface pressure on the pipe (DIN 3543-2:1984, which has since been withdrawn, provided for a support width of 50 mm for steel and cast iron pipes).

The saddle seal supplied compensates for the respective tube diameter to the tapping clamp and thus reliably seals the drilling.
Note on double stirrup clamps: Two stirrups (retaining pieces) and a special saddle seal are always necessary - please specify when ordering!

Contacts
Wish List
Order Nr.
*)
d
Steel-PE
For type of pipe
Steel-PE-FZM
CI - PE
Steel
Cast Iron
Type of pipe
ZMU
 Medium Weight Specification Basket
3110800365
   75 - 88 mm 65 Cast Iron|Steel     65 65 Cast iron|Steel 65 0,75 kg
3110800375
   79 - 92 mm 65 Steel         Steel   0,75 kg
3110800400
 1) 88 - 103 mm 80 Cast Iron|Steel   80 80 80 Cast iron|Steel   0,75 kg
3111000435
   104 - 114 mm   Cast Iron         Cast iron 80 0,80 kg
3111000445
   107 - 120 mm 100 Steel 80   100   Steel   0,80 kg
3111000450
 1) 110 - 123 mm 100 Cast Iron|Steel   100 100 100 Cast iron|Steel   0,80 kg
3111000460
   116 - 128 mm   Cast Iron   100     Cast iron 100 0,80 kg
3111000490
   126 - 139 mm 125 Steel 100       Steel   0,90 kg
3111250520
   138 - 151 mm 125 Cast Iron|Steel 100 125 125 125 Cast iron|Steel   0,90 kg
3111250540
   146 - 158 mm   Cast Iron   125     Cast iron 125 0,90 kg
3111500570
   157 - 169 mm   Steel 125   150   Steel   0,95 kg
3111500595
 1) 166 - 178 mm 150 Cast Iron|Steel 125 150 150 150 Cast iron|Steel   0,95 kg
3111500620
   175 - 188 mm   Cast Iron         Cast iron 150 1,00 kg
3111500630
   178 - 191 mm   Cast Iron         Cast iron 150 1,00 kg
3111750645
   183 - 196 mm   Cast Iron|Steel 150     175 Cast iron|Steel   1,00 kg
3112000685
   199 - 210 mm                 1,05 kg
3112000710
   208 - 220 mm   Steel     200   Steel   1,05 kg
3112000725
   213 - 225 mm 200 Cast Iron|Steel     200 200 Cast iron|Steel   1,10 kg
3112000745
   220 - 232 mm 200 Cast Iron|Steel   200   200 Cast iron|Steel 200 1,10 kg
3112000770
   229 - 241 mm   Cast Iron         Cast iron 200 1,10 kg
3112250800
   239 - 251 mm   Cast Iron|Steel 200     225 Cast iron|Steel   1,15 kg
3112250830
   250 - 262 mm   Cast Iron       225 Cast iron   1,15 kg
3112500865
   262 - 274 mm   Cast Iron|Steel     250 250 Cast iron|Steel   1,20 kg
3112500905
   275 - 287 mm 250 Cast Iron|Steel   250 250   Cast iron|Steel 250 1,20 kg
3112750935
   286 - 298 mm   Steel 250       Steel   1,25 kg
3113000975
   299 - 311 mm                 1,30 kg
3113000995
   306 - 318 mm                 1,30 kg
3113001035
   319 - 331 mm 300 Cast Iron|Steel   300 300 300 Cast iron|Steel   1,35 kg
3113001055
   326 - 337 mm 300 Cast Iron|Steel   300     Cast iron|Steel   1,40 kg
3113001085
   334 - 346 mm               300 1,40 kg
3113001120
   347 - 358 mm   Steel 300   350   Steel   1,45 kg
3113501155
   359 - 370 mm 350 Steel         Steel   1,45 kg
3113501205
   375 - 387 mm   Cast Iron|Steel 350 350   350 Cast iron|Steel   1,50 kg
3113501270
   396 - 409 mm   Steel     400   Steel   1,55 kg
3114001345
   419 - 434 mm   Cast Iron|Steel 400 400   400 Cast iron|Steel   1,65 kg
3114001392
   435 - 449 mm   Cast Iron         Cast iron 400 1,70 kg
3114001425
   448 - 459 mm                 1,75 kg
3114001455
   457 - 469 mm                 1,75 kg
3114501495
   470 - 482 mm   Cast Iron       450 Cast iron   1,80 kg
3114501530
   482 - 494 mm                 1,85 kg
3114501545
   487 - 499 mm                 1,90 kg
3115001610
   508 - 520 mm   Steel     500   Steel   2,00 kg
3115001655
   523 - 535 mm   Cast Iron|Steel 500     500 Cast iron|Steel   2,05 kg
3115001690
   540 - 549 mm   Cast Iron         Cast iron 500 3,50 kg
3115001780
   572 - 582 mm                 3,60 kg
Wish List
1)
Also available as packaging unit.

Note: The application ranges (DN) specified in the table as a function of the kind of pipe and the pipe outside diameter are only intended as assistance. Prior to ordering, the actual outside diameter of the pipeline should be checked.

Note on double stirrup clamps: Two stirrups (retaining pieces) and a special saddle seal are always necessary - please specify when ordering!
