314-00

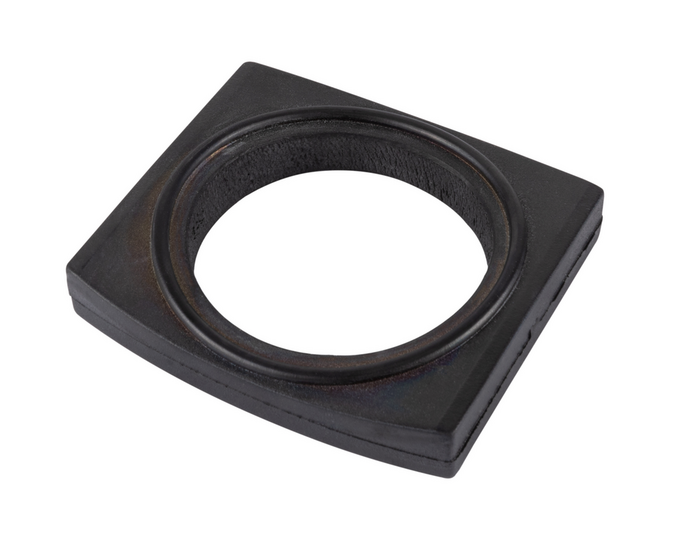

Special saddle seal for 2" Hawlinger (ZAK 69) for max. drilling diameter 50 mm
| Material: | Elastomer |
|---|---|
| Medium | Water |
The saddle seal for the 2" Hawlinger (ZAK 69) in combination with a Hawle bracket (order no. 309-00, order no. 310-00 or order no. 311-00, 311-01, 311-02, 311-03) ensures a reliable seal when connected to cast iron, steel or AZ pipes. The maximum possible drilling diameter is 50 mm. Suitable for pipe diameters from DN 100 - DN 500.
Please refer to our operating and maintenance instructions before drilling.
|
Order Nr.
|
Description |
For type of pipe |
Type of pipe |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|
|
3140000103
|
Pipe DN 100 | Cast Iron|Steel|AC | Cast iron|Steel|AC | 0,06 kg | |||
|
3140000153
|
Ppipe DN 125 - 150 | Cast Iron|Steel|AC | Cast iron|Steel|AC | 0,05 kg | |||
|
3140000203
|
Pipe DN 200 - 300 | Cast Iron|Steel|AC | Cast iron|Steel|AC | 0,05 kg | |||
|
3140000403
|
Pipe DN 300 - 500 | Cast Iron|Steel|AC | Cast iron|Steel|AC | 0,05 kg |
|
