317-00G

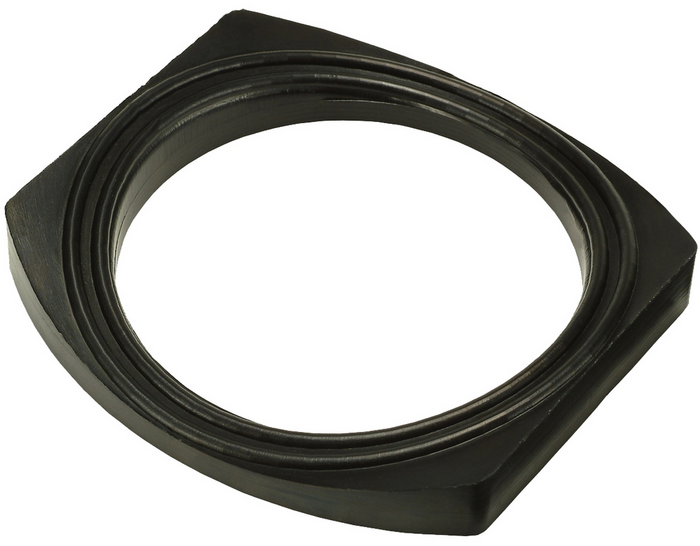

Saddle gasket for double bow clamps with internal thread 2 1/2", 3" or flange DN 80 for gas
| Material: | NBR |
|---|---|
| Medium | Gas |
Saddle seals for double bow clamps with flange DN 80 (order no. 355-01), BAIO® socket (order no. 359-00), IG 2 1/2" or 3" (order no. 359-02) in combination with Hawle brackets (order no. 310-00G) ensure a reliable seal when connected to cast iron, steel or AZ pipes.
The maximum possible drilling diameter depends on the clamp type and pipe outer diameter.
Note on double bracket clamps: Two brackets (retaining pieces) are always necessary - please specify when ordering!
|
Order Nr.
|
Pipe DN |
For type of pipe |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|
|
3171510000
|
150 | AC|Cast Iron|Steel | 0,10 kg | |||
|
3172010000
|
200 | AC|Cast Iron|Steel | 0,10 kg | |||
|
3172510000
|
250 | AC|Cast Iron|Steel | 0,08 kg | |||
|
3173010000
|
300 | AC|Cast Iron|Steel | 0,08 kg | |||
|
3173510000
|
350 | AC|Cast Iron|Steel | 0,07 kg | |||
|
3174010000
|
400 | AC|Cast Iron|Steel | 0,08 kg | |||
|
3174510000
|
450-500 | AC|Cast Iron|Steel | 0,08 kg |
|
