445-00

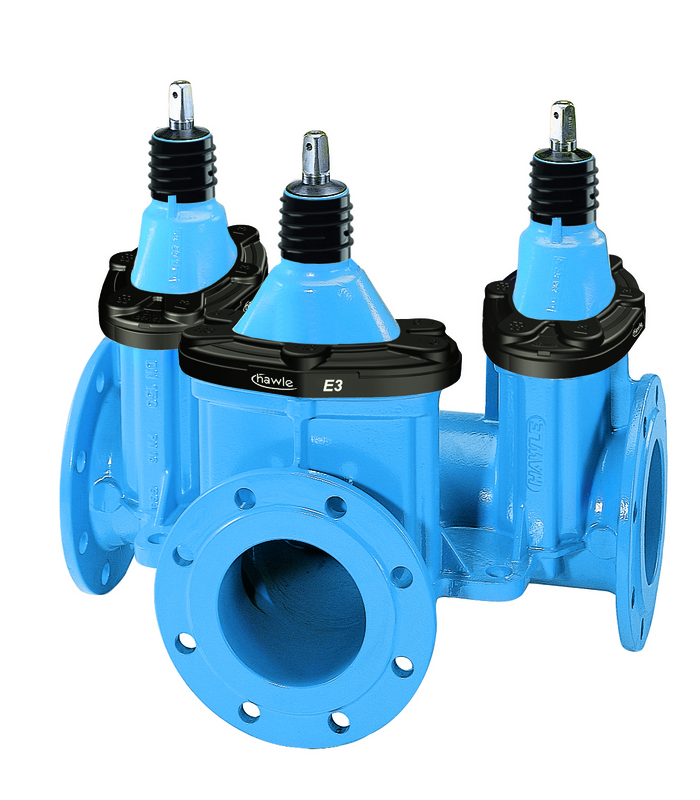

Combi-III gate valve with flanges

Combi-III gate valve with flanges at all ends. For the installation of valve junctions with up to 3 gate valves in confined space.

The compact design affords major savings in material, labour, transport, and storage costs. If no shut-off is required at one or more outlets, a blind cover can be factory preinstalled - Please specify clock position.

Delivered with round thread adaptor for the pinless fixing of Hawle extension spindles. square end cap for manhole installation on request.

Flange dimensions: acc. to EN 1092-2

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle: stainless steel
Wedge nut: brass
Wedge: GJS-400, EPDM inside and outside acc. to KTW-BWGL for water
Gaskets: EPDM acc. to KTW-BWGL for water
E3-edge protection ring: PE
Max. operating Pressure: See table
Medium Water

Combi-III gate valve with flanges at all ends. For the installation of valve junctions with up to 3 gate valves in confined space.

The compact design affords major savings in material, labour, transport, and storage costs. If no shut-off is required at one or more outlets, a blind cover can be factory preinstalled - Please specify clock position.

Delivered with round thread adaptor for the pinless fixing of Hawle extension spindles. square end cap for manhole installation on request.

Flange dimensions: acc. to EN 1092-2

Contacts
Wish List
Order Nr.

DN
Operating pressure max.
PN
Type / Outlet
L

L1
B
H1
Square of spindle
Numbers of
gate valves
 Medium Weight Specification Basket
4450802000
 80 16 bar 10|16 Type E3 435 mm 218 mm 255 mm 315 mm 17,3 mm 2 59,00 kg
4450803000
 80 16 bar 10|16 Type E3 435 mm 218 mm 255 mm 315 mm 17,3 mm 3 53,00 kg
4451002000
 100 16 bar 10|16 Type E3 555 mm 278 mm 365 mm 345 mm 19,3 mm 2 62,00 kg
4451003000
 100 16 bar 10|16 Type E3 555 mm 278 mm 365 mm 345 mm 19,3 mm 3 67,00 kg
4451252000
 125 16 bar 10|16 Type E3 615 mm 308 mm 415 mm 420 mm 19,3 mm 2 82,00 kg
4451253000
 125 16 bar 10|16 Type E3 615 mm 308 mm 415 mm 435 mm 19,3 mm 3 89,00 kg
4451502000
 150 16 bar 10|16 Type E3 625 mm 313 mm 415 mm 435 mm 19,3 mm 2 115,00 kg
4451503000
 150 16 bar 10|16 Type E3 625 mm 313 mm 415 mm 435 mm 19,3 mm 3 125,00 kg
4452002000
 200 10 bar 10 Type E3 695 mm 348 mm 465 mm 540 mm 24,3 mm 2 210,00 kg
4452003000
 200 10 bar 10 Type E3 695 mm 348 mm 465 mm 540 mm 24,3 mm 3 183,00 kg
4452012000
 200 16 bar 16 Type E3 695 mm 348 mm 465 mm 540 mm 24,3 mm 2 210,00 kg
4452013000
 200 16 bar 16 Type E3 695 mm 348 mm 465 mm 540 mm 24,3 mm 3 183,00 kg
Wish List

Female thread 3/4" at body, for manometer, ball valve, etc. - on request (against surcharge)

Version with square protector for shaft installation on request. Suitable formwork tube for Combi-III fittings (Order No. 440 000 1500)

Supplied with round thread adapter for pinless attachment of Hawle installation sets.
