525-01G

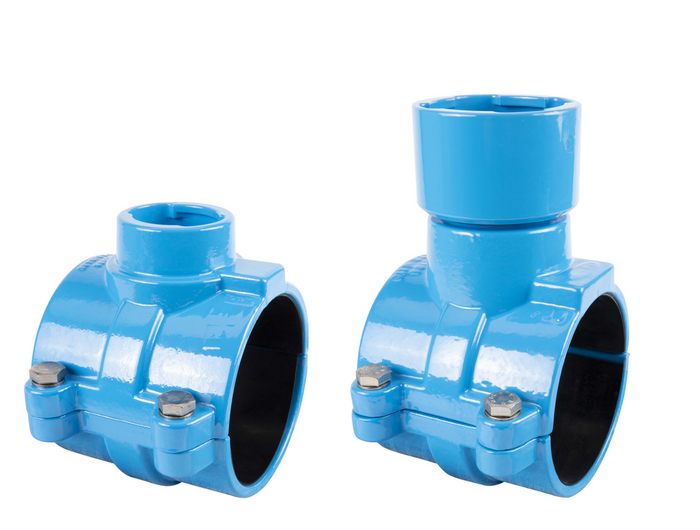

HAKU pipe saddle with ZAK® outlet for gas


Material: |
GJS-400, Hawle epoxy powder coated Gaskets: NBR for gas |
---|---|
Max. operating Pressure: | Gas: 1 bar (only PVC) |
Medium | Gas |
HAKU pipe saddles with ZAK® socket outlet are to be used for installation on PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.
The ZAK® socket outlet serves the purpose of establishing a restraint connection with valves and fittings with ZAK® spigot end.
In combination with a tapping device suitable for gas, the simple tapping of a pipe is possible.
Order Nr.
|
L |
B |
D |
H |
Borehole max. |
Outlet O |
Medium | Weight | Specification | Basket |
---|---|---|---|---|---|---|---|---|---|---|
5250630465
|
125 mm | 100 mm | 63 mm | 111 mm | 36 mm | ZAK 46 | 1,90 kg | |||
5250750465
|
135 mm | 110 mm | 75 mm | 125 mm | 36 mm | ZAK 46 | 2,30 kg | |||
5250900465
|
150 mm | 120 mm | 90 mm | 142 mm | 36 mm | ZAK 46 | 3,00 kg | |||
5251100465
|
170 mm | 120 mm | 110 mm | 163 mm | 36 mm | ZAK 46 | 3,10 kg | |||
5251250465
|
190 mm | 120 mm | 125 mm | 172 mm | 36 mm | ZAK 46 | 3,80 kg | |||
5251400465
|
205 mm | 120 mm | 140 mm | 195 mm | 36 mm | ZAK 46 | 4,40 kg | |||
5251600465
|
230 mm | 120 mm | 160 mm | 215 mm | 36 mm | ZAK 46 | 4,90 kg | |||
5251800465
|
235 mm | 120 mm | 180 mm | 234 mm | 36 mm | ZAK 46 | 5,30 kg | |||
5252250465
|
300 mm | 120 mm | 225 mm | 280 mm | 36 mm | ZAK 46 | 7,60 kg |
