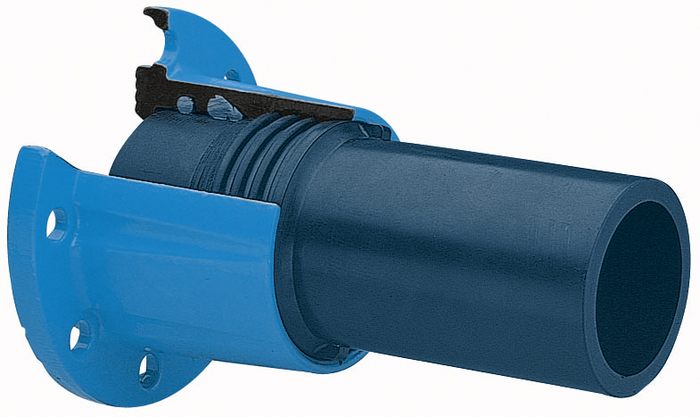

Flange with PE fusion end

Flange-PE transition. The PE pipe is used for welding into PE pipes using heating coil or mirror welding processes. The PE nozzle is mounted at the factory to prevent twisting.

Flange connection dimensions according to DIN EN 1092-2

read more reduce
Material: DCI: GJS-400, Hawle epoxy powder coated
Fusion end: PE 100 with support liner of stainless steel
Gaskets: EPDM acc. to KTW-BWGL for water
Max. operating Pressure: See table
Medium Water / Sewage

Flange-PE transition. The PE pipe is used for welding into PE pipes using heating coil or mirror welding processes. The PE nozzle is mounted at the factory to prevent twisting.

Flange connection dimensions according to DIN EN 1092-2

Contacts
Wish List
Order Nr.
*)
DN
Operating pressure max.
PN
d
L

For type of pipe
SDR
 Medium Weight Specification Basket
5340901000
   80 Waste water: 16 bar|Potable water: 16 bar 10/16 90 mm 305 mm PE 11 6,90 kg
5340901001
   80 Waste water: 10 bar|Potable water: 10 bar 10/16 90 mm 305 mm PE 17 6,90 kg
5341101000
   100 Waste water: 16 bar|Potable water: 16 bar 10/16 110 mm 325 mm PE 11 8,90 kg
5341101001
   100 Waste water: 10 bar|Potable water: 10 bar 10/16 110 mm 325 mm PE 17 8,90 kg
5341251000
   100 Waste water: 16 bar|Potable water: 16 bar 10/16 125 mm 375 mm PE 11 12,60 kg
5341251001
   100 Waste water: 10 bar|Potable water: 10 bar 10/16 125 mm 375 mm PE 17 12,60 kg
5341601000
   150 Waste water: 16 bar|Potable water: 16 bar 10/16 160 mm 360 mm PE 11 17,60 kg
5341601001
   150 Waste water: 10 bar|Potable water: 10 bar 10/16 160 mm 360 mm PE 17 17,60 kg
5341801000
   150 Waste water: 16 bar|Potable water: 16 bar 10/16 180 mm 435 mm PE 11 23,00 kg
5342001000
 1) 200 Waste water: 10 bar|Potable water: 10 bar 10 200 mm 405 mm PE 11 31,00 kg
5342001001
 1) 200 Waste water: 10 bar|Potable water: 10 bar 10 200 mm 405 mm PE 17 31,00 kg
5342251000
 1) 200 Waste water: 10 bar|Potable water: 10 bar 10 225 mm 405 mm PE 11 31,00 kg
5342251001
 1) 200 Waste water: 10 bar|Potable water: 10 bar 10 225 mm 405 mm PE 17 31,00 kg
Wish List
1)
with flange drilling PN 16 on request
