- 1)

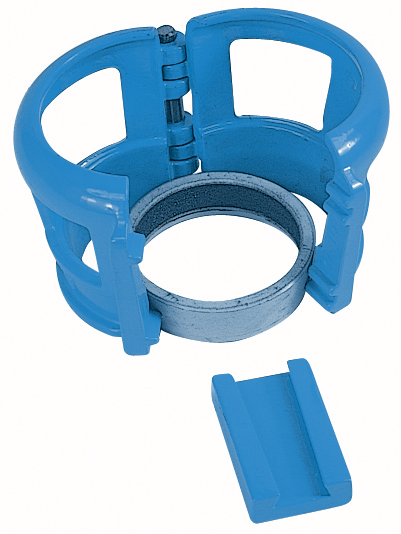

- Version with hinge and one wedge lock - grip ring of PVC/corundum
- 2)
- Version with two wedge locks - grip ring of brass
570-00

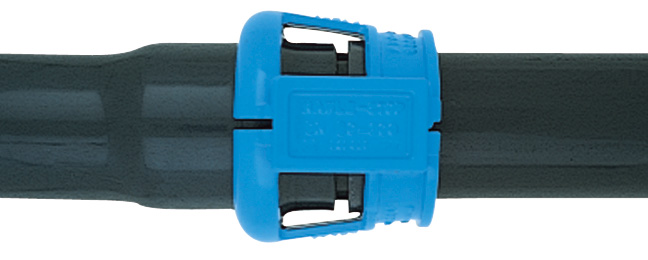

Restraint joint "Rohrclipper" for PVC pipes
| Material: |
Half shells/wedge lock: GJS-400, Hawle epoxy powder coated Hinged axle: stainless steel Grip ring: PVC/corundum or brass |
|---|---|
| Max. operating Pressure: | See table |
| Medium | Water / Sewage |
PVC "Rohrclippers" are used in the field of underground pipeline construction for the restraint connection of PVC push-fit sockets and PVC pipe spigot ends.
|
Order Nr.
|
*) |
DN |
d |
Outside diameter max. |
Description |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|
|
5700631600
|
2) | 50 | 63 mm | 180 mm | for PVC-pipe PN 10/16 | 2,70 kg | |||
|
5700751600
|
2) | 65 | 75 mm | 200 mm | for PVC-pipe PN 10/16 | 2,90 kg | |||
|
5700900000
|
1) | 80 | 90 mm | 205 mm | for PVC-pipe PN 10 | 3,00 kg | |||
|
5700901600
|
2) | 80 | 90 mm | 205 mm | for PVC-pipe PN 16 | 3,00 kg | |||
|
5701100000
|
1) | 100 | 110 mm | 225 mm | for PVC-pipe PN 10 | 4,40 kg | |||
|
5701101600
|
2) | 100 | 110 mm | 225 mm | for PVC-pipe PN 16 | 4,25 kg | |||
|
5701400000
|
1) | 125 | 140 mm | 255 mm | for PVC-pipe PN 10 | 4,70 kg | |||
|
5701401600
|
2) | 125 | 140 mm | 225 mm | for PVC-pipe PN 16 | 4,35 kg | |||
|
5701600000
|
1) | 150 | 160 mm | 285 mm | for PVC-pipe PN 10 | 5,40 kg | |||
|
5701601600
|
2) | 150 | 160 mm | 285 mm | for PVC-pipe PN 16 | 6,55 kg | |||
|
5702250000
|
1) | 200 | 225 mm | 365 mm | for PVC-pipe PN 10 | 8,85 kg | |||
|
5702251600
|
2) | 200 | 225 mm | 365 mm | for PVC-pipe PN 16 | 10,30 kg | |||
|
5702801000
|
2) | 250 | 280 mm | 455 mm | for PVC-pipe PN 10 | 13,00 kg | |||
|
5703151000
|
2) | 300 | 315 mm | 495 mm | for PVC-pipe PN 10 | 17,00 kg |
