590-00
Support liner of stainless steel or coated steel for PE pipes

Support liners reduce the flow behaviour of PE pipes at restraint connections and screw socket connections.

When connecting PE pipes a support liner must be used.

Replacement wedges d 75 – d 400 mm available on request.

read more reduce
Material: Support liner/wedge:

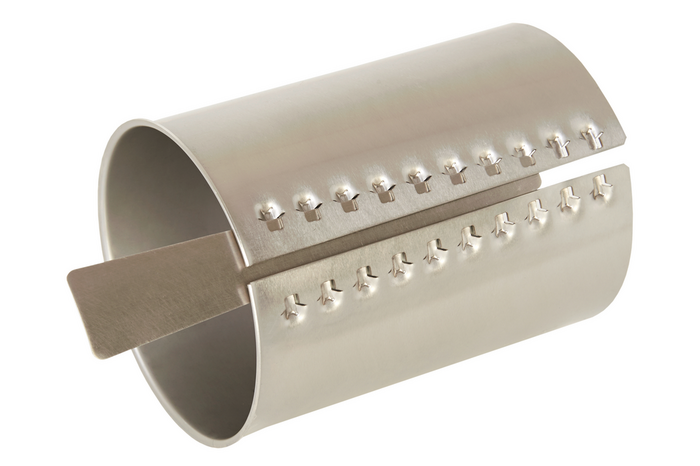

up to d 400 mm: stainless steel (Fig. 1)
from d 450 to 630 mm: steel, Rilsan Nylon 11 coating (Fig. 2)
Medium Water / Sewage

Support liners reduce the flow behaviour of PE pipes at restraint connections and screw socket connections.

When connecting PE pipes a support liner must be used.

Replacement wedges d 75 – d 400 mm available on request.

Contacts
Wish List
Order Nr.
*)
d
Type of pipe
SDR
 Medium Weight Specification Basket
5900750001
 1) 75 mm PE 17 0,25 kg
5900750002
 1) 75 mm PE 11 0,25 kg
5900900001
 1) 90 mm PE 17 0,40 kg
5900900002
 1) 90 mm PE 11 0,45 kg
5901100001
 1) 110 mm PE 17 0,45 kg
5901100002
 1) 110 mm PE 11 0,80 kg
5901250001
 1) 125 mm PE 17 0,55 kg
5901250002
 1) 125 mm PE 11 0,50 kg
5901400001
 1) 140 mm PE 17 0,55 kg
5901400002
 1) 140 mm PE 11 0,55 kg
5901600001
 1) 160 mm PE 17 0,85 kg
5901600002
 1) 160 mm PE 11 0,90 kg
5901800001
 1) 180 mm PE 17 1,10 kg
5901800002
 1) 180 mm PE 11 1,00 kg
5902000001
 1) 200 mm PE 17 1,10 kg
5902000002
 1) 200 mm PE 11 1,05 kg
5902250001
 1) 225 mm PE 17 1,81 kg
5902250002
 1) 225 mm PE 11 1,60 kg
5902500001
 1) 250 mm PE 17 1,90 kg
5902500002
 1) 250 mm PE 11 1,80 kg
5902800001
 1) 280 mm PE 17 1,85 kg
5902800002
 1) 280 mm PE 11 1,90 kg
5903150002
 1) 315 mm PE 17 2,30 kg
5903150003
 1) 315 mm PE 11 2,10 kg
5903550001
 1) 355 mm PE 17 2,75 kg
5903550002
 1) 355 mm PE 11 2,80 kg
5904000002
 1) 400 mm PE 17 3,15 kg
5904000003
 1) 400 mm PE 11 2,70 kg
Wish List
1)
stainless steel
2)
Steel coated

When connecting PE pipes a support liner must be used.
