693-00

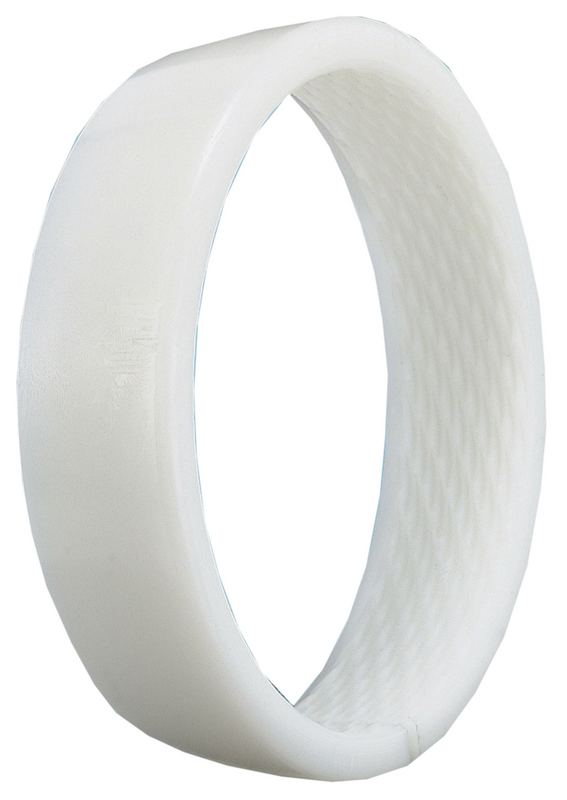

Grip ring for PE pipes


Material: | Polyoxymethylene (POM) |
---|---|
Max. operating Pressure: |
Sewage water: 16 bar Potable water: 16 bar |
Medium | Water / Sewage |
Spare grip ring with interlocked teeth for push-fit sockets, to be used with PE pipes grades PE 80, PE 100 and PE-X.
Not suitable for Hawle BAIO®-System.
Order Nr.
|
Operating pressure max. |
d |
Type of pipe |
Medium | Weight | Specification | Basket |
---|---|---|---|---|---|---|---|
6930200000
|
16 bar | 20 mm | PE | 0,01 kg | |||
6930250000
|
16 bar | 25 mm | PE | 0,01 kg | |||
6930320000
|
16 bar | 32 mm | PE | 0,01 kg | |||
6930400000
|
16 bar | 40 mm | PE | 0,02 kg | |||
6930500000
|
16 bar | 50 mm | PE | 0,03 kg | |||
6930630000
|
16 bar | 63 mm | PE | 0,04 kg | |||
6930750000
|
16 bar | 75 mm | PE | 0,06 kg | |||
6930900000
|
16 bar | 90 mm | PE | 0,07 kg | |||
6931100000
|
16 bar | 110 mm | PE | 0,14 kg | |||
6931250000
|
16 bar | 125 mm | PE | 0,17 kg | |||
6931400000
|
16 bar | 140 mm | PE | 0,18 kg | |||
6931600000
|
16 bar | 160 mm | PE | 0,23 kg | |||
6931800000
|
16 bar | 180 mm | PE | 0,27 kg |
