695-00

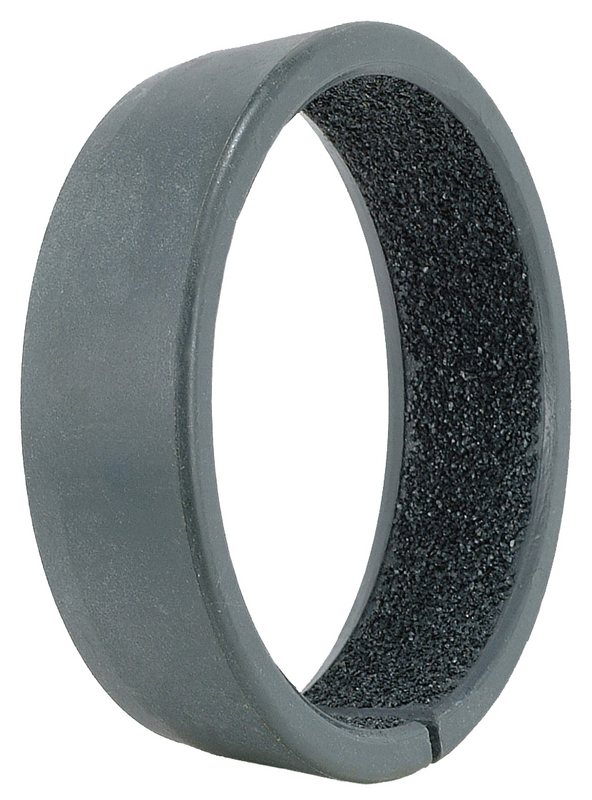

Grip ring with corundum, for PVC pipes

Spare grip ring with corundum for push-fit sockets, for use with PVC pipes.

read more reduce
Material: PVC, corundum
Max. operating Pressure: Sewage water: 16 bar
Potable water: 16 bar
Medium Water / Sewage

Spare grip ring with corundum for push-fit sockets, for use with PVC pipes.

Contacts
Wish List
Order Nr.

d
Operating pressure max.
Description
For type of pipe
Type of pipe
 Medium Weight Specification Basket
6940200000
 20 mm   surcharge PVC PVC 0,01 kg
6940250000
 25 mm   surcharge PVC PVC 0,28 kg
6940320000
 32 mm   surcharge PVC PVC 0,01 kg
6940400000
 40 mm   surcharge PVC PVC 0,02 kg
6940500000
 50 mm   surcharge PVC PVC 0,02 kg
6940630000
 63 mm   surcharge PVC PVC 0,03 kg
6940750000
 75 mm   surcharge PVC PVC 0,04 kg
6940900000
 90 mm   surcharge PVC PVC 0,05 kg
6941100000
 110 mm   surcharge PVC PVC 0,09 kg
6941250000
 125 mm   surcharge PVC PVC 0,13 kg
6941400000
 140 mm   surcharge PVC PVC 0,15 kg
6941600000
 160 mm   surcharge PVC PVC 0,18 kg
6950200000
 20 mm Waste water: 16 bar|Potable water: 16 bar clamping ring PVC PVC 0,01 kg
6950250000
 25 mm Waste water: 16 bar|Potable water: 16 bar clamping ring PVC PVC 0,01 kg
6950320000
 32 mm Waste water: 16 bar|Potable water: 16 bar clamping ring PVC PVC 0,01 kg
6950400000
 40 mm Waste water: 16 bar|Potable water: 16 bar clamping ring PVC PVC 0,02 kg
6950500000
 50 mm Waste water: 16 bar|Potable water: 16 bar clamping ring PVC PVC 0,02 kg
6950630000
 63 mm Waste water: 16 bar|Potable water: 16 bar clamping ring PVC PVC 0,03 kg
6950750000
 75 mm Waste water: 16 bar|Potable water: 16 bar clamping ring PVC PVC 0,04 kg
6950900000
 90 mm Waste water: 16 bar|Potable water: 16 bar clamping ring PVC PVC 0,05 kg
6951100000
 110 mm Waste water: 16 bar|Potable water: 16 bar clamping ring PVC PVC 0,09 kg
6951250000
 125 mm Waste water: 16 bar|Potable water: 16 bar clamping ring PVC PVC 0,13 kg
6951400000
 140 mm Waste water: 16 bar|Potable water: 16 bar clamping ring PVC PVC 0,15 kg
6951600000
 160 mm Waste water: 16 bar|Potable water: 16 bar clamping ring PVC PVC 0,18 kg
6952250000
 225 mm Waste water: 16 bar|Potable water: 16 bar clamping ring PVC PVC 0,28 kg
Wish List

All push-fit fittings of our range are provided with a grip ring for PE pipes. The surcharges quoted in the table include factory preinstalled grip ring with corundum for PVC pipes, on the one hand, and the surcharge for the interlocked grip ring, on the other hand.
