713-00
Double chamber flange for steel pipes
| Material: |
Flange: GJS-400/GJL-250, Hawle epoxy powder coated Gasket: elastomer |
|---|---|
| Max. operating Pressure: | See table |
| Medium | Water / Sewage |

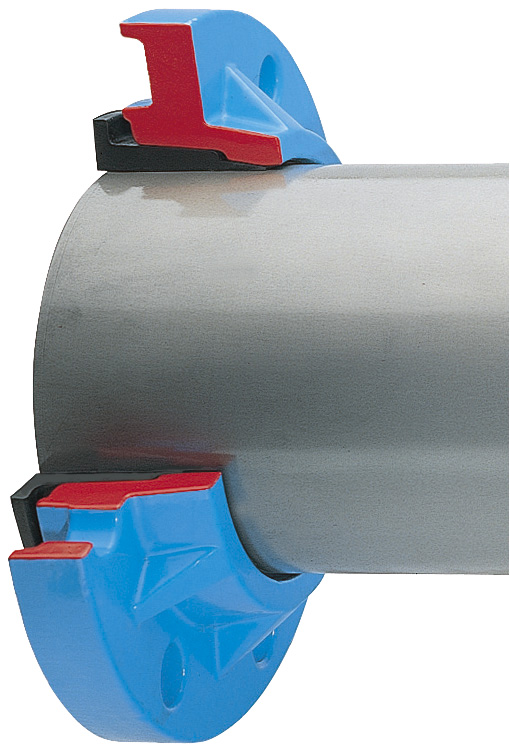

Double chamber flange with integral flat gasket for steel pipes.
For required bolt lengths see "Technical description".
Please note: no restraint connection!
|
Order Nr.
|
DN |
Operating pressure max. |
PN |
d |
L |
D � |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
7130500570
|
50 | 16 bar | 10/16 | 56 - 57 mm | 55 mm | 165 mm | 2,85 kg | |||
|
7130500600
|
50 | 16 bar | 10/16 | 59 - 61 mm | 55 mm | 165 mm | 2,50 kg | |||
|
7130650760
|
65 | 16 bar | 10/16 | 76 mm | 55 mm | 185 mm | 3,70 kg | |||
|
7130800890
|
80 | 16 bar | 10/16 | 89 mm | 65 mm | 200 mm | 3,15 kg | |||
|
7131001080
|
100 | 16 bar | 10/16 | 108 mm | 65 mm | 220 mm | 3,85 kg | |||
|
7131001140
|
100 | 16 bar | 10/16 | 114 mm | 65 mm | 220 mm | 3,85 kg | |||
|
7131251330
|
125 | 16 bar | 10/16 | 133 mm | 65 mm | 250 mm | 7,00 kg | |||
|
7131501680
|
150 | 16 bar | 10/16 | 168 mm | 65 mm | 285 mm | 5,30 kg | |||
|
7132002116
|
200 | 16 bar | 16 | 211 mm | 70 mm | 360 mm | 12,00 kg |
|
