Blank flange

720-00

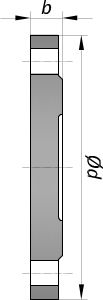

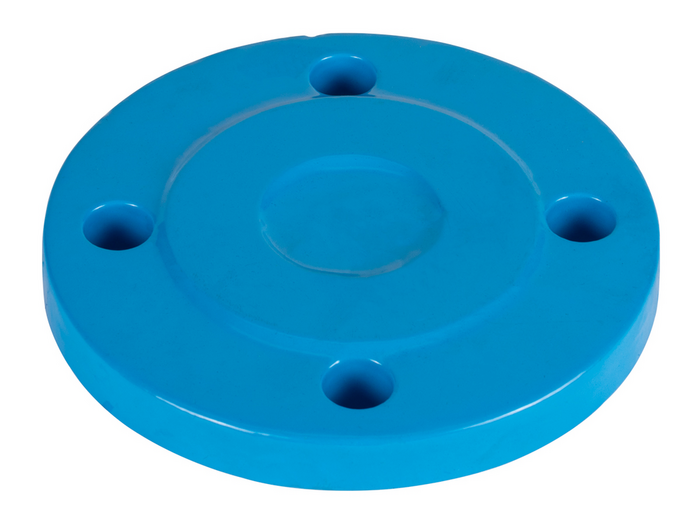

Blank flange

Material:	GJS-400, Hawle epoxy powder coated
Max. operating Pressure:	See table
Medium	Water / Sewage

Contacts

Wish List

Models
Technical documents

Order Nr.	DN	Operating pressure max.	PN	B	D �	Weight
7200500000	50	16 bar	10/16	19 mm	165 mm	3,00 kg
7200650000	65	16 bar	10/16	19 mm	185 mm	4,50 kg
7200800000	80	16 bar	10/16	19 mm	200 mm	3,60 kg
7201000000	100	16 bar	10/16	19 mm	220 mm	4,32 kg
7201250000	125	16 bar	10/16	19 mm	250 mm	6,40 kg
7201500000	150	16 bar	10/16	19 mm	285 mm	7,60 kg
7202000000	200	10 bar	10	20 mm	340 mm	14,40 kg

Wish List

Further information
General instruction for Pipe Fittings, Connection technology, Pipe coupling

7200500000

Product: Hawle (Ord. No. 720-00) or equivalent
Blank flange, flange acc. to EN 1092-2.

Material: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476 (P) and DIN 30677-2 (coating thickness: min. 250 μm, zero-porosity at 3 kV, adhesion inside at outside min. 12 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute)
