804-00
Socket end cap - System 2000

The socket end cap serves as a tool for blanking off pipes for pressure testing, flushing and finishing a construction section. With one vertical female thread outlet, and with one horizontal push-fit socket for the restraint connection with PE pipes grades PE 80, PE 100 and PVC pipes.

The pipe is sealed via lip gasket. Due to the contour of the lip gasket the pipe end can be pushed into the sealing chamber without great effort. The restraint joint acts independently of the pipe gasket and is ensured by tightening the lock ring.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Gaskets: EPDM acc. to KTW-BWGL for water
Grip ring: brass for DN 50 - 250, red brass for DN 300 and higher
Max. operating Pressure: Sewage water: 16 bar
Potable water: 16 bar
Medium Water / Sewage

The socket end cap serves as a tool for blanking off pipes for pressure testing, flushing and finishing a construction section. With one vertical female thread outlet, and with one horizontal push-fit socket for the restraint connection with PE pipes grades PE 80, PE 100 and PVC pipes.

The pipe is sealed via lip gasket. Due to the contour of the lip gasket the pipe end can be pushed into the sealing chamber without great effort. The restraint joint acts independently of the pipe gasket and is ensured by tightening the lock ring.

Contacts
Wish List

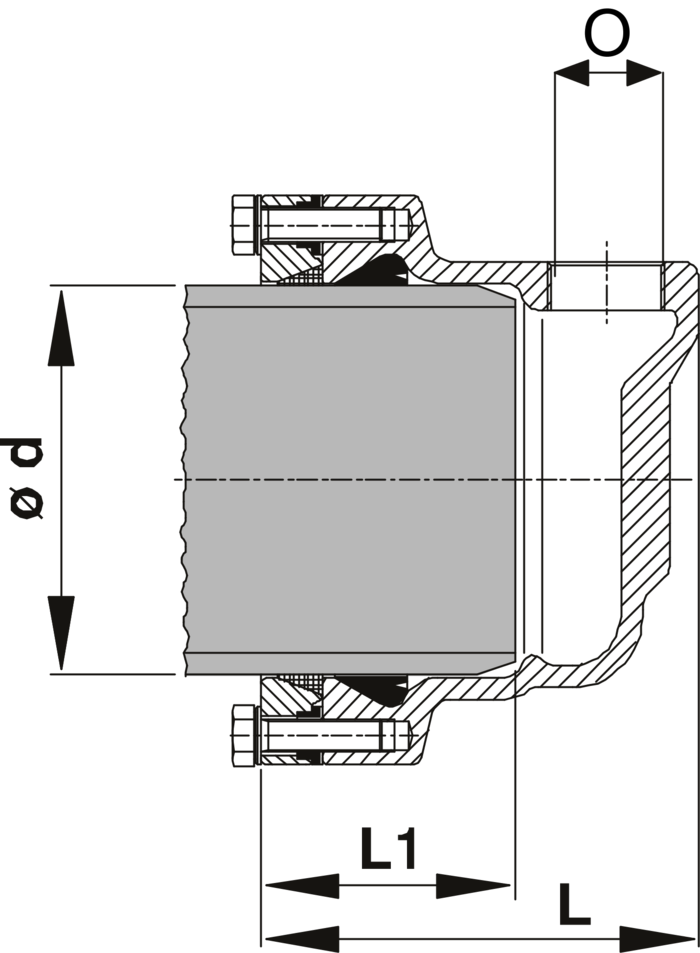

Order Nr.
*)
DN
Operating pressure max.
d
Upper outlet
Female thread (IG)
L

L1
For type of pipe
 Medium Weight Specification Basket
8040630400
   50 Potable water: 16 bar|Waste water: 16 bar 63 mm female thread 1 1/4" 1 1/4" 105 mm 80 mm PE|PVC 2,70 kg
8040630500
 1) 50 Potable water: 16 bar|Waste water: 16 bar 63 mm female thread 1 1/2" 1 1/2" 105 mm 80 mm PE|PVC 2,70 kg
8040630630
 1) 50 Potable water: 16 bar|Waste water: 16 bar 63 mm female thread 2" 2" 105 mm 80 mm PE|PVC 2,70 kg
8040750320
   65 Potable water: 16 bar|Waste water: 16 bar 75 mm female thread 1" 1" 140 mm 80 mm PE|PVC 3,20 kg
8040750400
   65 Potable water: 16 bar|Waste water: 16 bar 75 mm female thread 1 1/4" 1 1/4" 140 mm 80 mm PE|PVC 3,20 kg
8040750500
 1) 65 Potable water: 16 bar|Waste water: 16 bar 75 mm female thread 1 1/2" 1 1/2" 140 mm 80 mm PE|PVC 3,20 kg
8040750630
 1) 65 Potable water: 16 bar|Waste water: 16 bar 75 mm female thread 2" 2" 140 mm 80 mm PE|PVC 3,20 kg
8040900320
   80 Potable water: 16 bar|Waste water: 16 bar 90 mm female thread 1" 1" 140 mm 85 mm PE|PVC 4,50 kg
8040900400
   80 Potable water: 16 bar|Waste water: 16 bar 90 mm female thread 1 1/4" 1 1/4" 140 mm 85 mm PE|PVC 4,50 kg
8040900630
 1) 80 Potable water: 16 bar|Waste water: 16 bar 90 mm female thread 2" 2" 140 mm 85 mm PE|PVC 4,50 kg
8041100320
   100 Potable water: 16 bar|Waste water: 16 bar 110 mm female thread 1" 1" 160 mm 85 mm PE|PVC 5,80 kg
8041100400
   100 Potable water: 16 bar|Waste water: 16 bar 110 mm female thread 1 1/4" 1 1/4" 160 mm 85 mm PE|PVC 5,80 kg
8041100630
   100 Potable water: 16 bar|Waste water: 16 bar 110 mm female thread 2" 2" 160 mm 85 mm PE|PVC 5,80 kg
8041250320
   100 Potable water: 16 bar|Waste water: 16 bar 125 mm female thread 1" 1" 160 mm 85 mm PE|PVC 6,10 kg
8041250500
   100 Potable water: 16 bar|Waste water: 16 bar 125 mm female thread 1 1/2" 1 1/2" 160 mm 85 mm PE|PVC 6,10 kg
8041250630
   100 Potable water: 16 bar|Waste water: 16 bar 125 mm female thread 2" 2" 160 mm 85 mm PE|PVC 6,10 kg
8041400400
   125 Potable water: 16 bar|Waste water: 16 bar 140 mm female thread 1 1/4" 1 1/4" 170 mm 95 mm PE|PVC 7,40 kg
8041400630
   125 Potable water: 16 bar|Waste water: 16 bar 140 mm female thread 2" 2" 170 mm 95 mm PE|PVC 7,40 kg
8041600400
   150 Potable water: 16 bar|Waste water: 16 bar 160 mm female thread 1 1/4" 1 1/4" 180 mm 105 mm PE|PVC 8,60 kg
8041600630
   150 Potable water: 16 bar|Waste water: 16 bar 160 mm female thread 2" 2" 180 mm 105 mm PE|PVC 8,60 kg
8041800320
   150 Potable water: 16 bar|Waste water: 16 bar 180 mm female thread 1" 1" 190 mm 115 mm PE|PVC 11,70 kg
8041800400
   150 Potable water: 16 bar|Waste water: 16 bar 180 mm female thread 1 1/4" 1 1/4" 190 mm 115 mm PE|PVC 11,70 kg
8041800500
   150 Potable water: 16 bar|Waste water: 16 bar 180 mm female thread 1 1/2" 1 1/2" 190 mm 115 mm PE|PVC 11,70 kg
8041800630
   150 Potable water: 16 bar|Waste water: 16 bar 180 mm female thread 2" 2" 190 mm 115 mm PE|PVC 11,70 kg
8042000400
   200 Potable water: 16 bar|Waste water: 16 bar 200 mm female thread 1 1/4" 1 1/4" 205 mm 125 mm PE|PVC 14,50 kg
8042000630
   200 Potable water: 16 bar|Waste water: 16 bar 200 mm female thread 2" 2" 205 mm 125 mm PE|PVC 14,50 kg
8042250400
   200 Potable water: 16 bar|Waste water: 16 bar 225 mm female thread 1 1/4" 1 1/4" 205 mm 130 mm PE|PVC 16,50 kg
8042250630
   200 Potable water: 16 bar|Waste water: 16 bar 225 mm female thread 2" 2" 205 mm 130 mm PE|PVC 16,50 kg
8042500320
   250 Potable water: 16 bar|Waste water: 16 bar 250 mm female thread 1" 1" 225 mm 145 mm PE|PVC 20,50 kg
8042500630
   250 Potable water: 16 bar|Waste water: 16 bar 250 mm female thread 2" 2" 225 mm 145 mm PE|PVC 20,50 kg
8042800630
   250 Potable water: 16 bar|Waste water: 16 bar 280 mm female thread 2" 2" 230 mm 150 mm PE|PVC 25,00 kg
8043150320
   300 Potable water: 16 bar|Waste water: 16 bar 315 mm female thread 1" 1" 255 mm 175 mm PE|PVC 33,50 kg
8043150630
   300 Potable water: 16 bar|Waste water: 16 bar 315 mm female thread 2" 2" 255 mm 175 mm PE|PVC 33,50 kg
Wish List
1)
Female thread outlet axially in pipe direction

For PE pipes with thin walls (≥ SDR 21) and low interal pressure we recommend using a support liner
