831-00

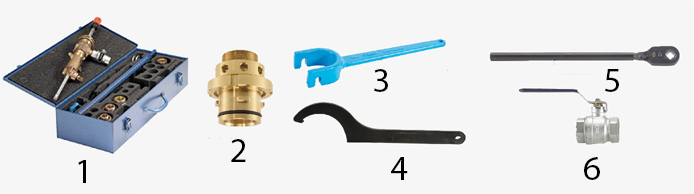

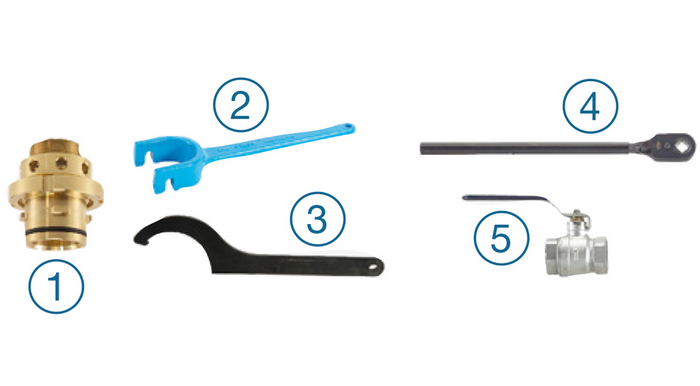

Accessories for drilling device "Hawlomat"

Product of Hawle (Art. No.: 831.000.6332) or equivalent
Drilling adaptor of brass for drilling device Hawlomat with male threads at both ends.

Male thread: 2" / 1"

Product of Hawle (Art. No.: 831.000.6340) or equivalent
Drilling adaptor of brass for drilling device Hawlomat with male threads at both ends.

Male thread: 2" / 1 1/4"

Product of Hawle (Art. No.: 831.000.6350) or equivalent
Drilling adaptor of brass for drilling device Hawlomat with male threads at both ends.

Male thread: 2" / 1 1/2"

Product of Hawle (Art. No.: 831.000.6351) or equivalent
Drilling adaptor of brass for drilling device Hawlomat with male threads at both ends.

Male thread: 2" / 1 1/2"
Inside diameter: 41 mm

Product of Hawle (Art. No.: 831.000.6363) or equivalent
Drilling adaptor of brass for drilling device Hawlomat with male threads at both ends.

Male thread: 2" / 2"

Product of Hawle (Art. No.: 831.000.9034) or equivalent
Drilling adaptor of brass for drilling device Hawlomat, with one male thread, and with one ZAK spigot end for accommodation in tapping valves and fittings with ZAK sockets.

Male thread: 2"
ZAK spigo

Product of Hawle (Art. No.: 831.000.9046) or equivalent
Drilling adaptor of brass for drilling device Hawlomat, with one male thread, and with one ZAK spigot end for accommodation in tapping valves and fittings with ZAK sockets.

Male thread: 2"
ZAK spigo

Product of Hawle (Art. No.: 831.000.9069) or equivalent
Drilling adaptor of brass for drilling device Hawlomat, with one male thread, and with one ZAK spigot end for accommodation in tapping valves and fittings with ZAK sockets.

Male thread: 2"
ZAK spigo

Product of Hawle (Art. No.: 831.009.0000) or equivalent
Ball valve for drilling device Hawlomat with female threads at both ends.

Female thread: 1"

Product of Hawle (Art. No.: 831.200.1100) or equivalent
Drilling unit ZAK 69, consisting of guide ring (Art. No.: 831.003.9012), drill rod adaptor (Art. No.: 831.003.9017), and twist drill (Art. No.: 831.105.0700)

Required accessory:
Cup drill d 40 mm (A

Product of Hawle (Art. No.: 831.700.0100) or equivalent
Allen key (AF 2.5 mm) for the safe fixing of centre drills.

Product of Hawle (Art. No.: 831.700.0400) or equivalent
Ratchet with square 16 mm for manual operation of the drill spindle when using the drilling device Hawlomat.

Product of Hawle (Art. No.: 831.700.0500) or equivalent
Feed key for fine-adjustment of feed when using the drilling device Hawlomat.

Product of Hawle (Art. No.: 831.700.0601) or equivalent
Hook wrench for installation of ZAK adaptors.

Product of Hawle (Art. No.: 835.021.0046) or equivalent
Adaptor ZAK 46 for setting tool.

Female thread: 1 1/2"
Male thread: 2"

Product of Hawle (Art. No.: 835.200.0000) or equivalent
Fixing adaptor for fixing of borehole sealing sleeves.

Product of Hawle (Art. No.: 835.200.0002) or equivalent
Adaptor for torque wrench with internal square 13/16 mm.

Product of Hawle (Art. No.: 849.000.0024) or equivalent
Handwheel of plastic for drill spindle.
