986-05
Vent valve Oxidizer version

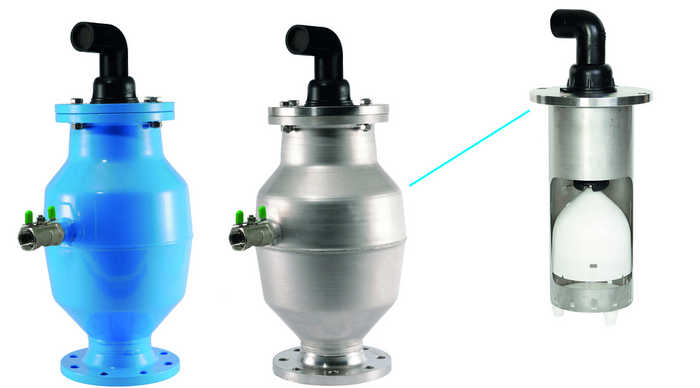

The Hawle 986-05 “Oxidator version” air inlet and outlet valve was specially developed for drinking water treatment for filters and oxidizers. The stainless steel sleeve integrated into the air inlet and outlet valve calms the turbulent oxygen-water mixture, allowing it to rise evenly in the valve. The calmed water lifts the special float, which is guided in the stainless steel sleeve, thereby activating the valve mechanism. The valve works very reliably and seals from 0 bar.
Digital version 986-04 available on request.

Connection types: Flange DN 50, 65, 80, 100 – other connections available on request.
Standard outlet elbow with AG 1 ½" – with Kamlok quick coupling available on request.

Max. venting capacity: 440 m3/h
Ventilation cross-section: 480 mm2
Operating range: continuously variable from 0 - 10 bar

Exhaust air set with hose for easy maintenance, see order no. 9861001010.

Translated with DeepL.com (free version)

read more reduce
Material: BEV housing: stainless steel or steel - Hawle epoxy powder coating
For further components, see parts list.
Max. operating Pressure: Potable water: 10 bar
Medium Water

The Hawle 986-05 “Oxidator version” air inlet and outlet valve was specially developed for drinking water treatment for filters and oxidizers. The stainless steel sleeve integrated into the air inlet and outlet valve calms the turbulent oxygen-water mixture, allowing it to rise evenly in the valve. The calmed water lifts the special float, which is guided in the stainless steel sleeve, thereby activating the valve mechanism. The valve works very reliably and seals from 0 bar.
Digital version 986-04 available on request.

Connection types: Flange DN 50, 65, 80, 100 – other connections available on request.
Standard outlet elbow with AG 1 ½" – with Kamlok quick coupling available on request.

Max. venting capacity: 440 m3/h
Ventilation cross-section: 480 mm2
Operating range: continuously variable from 0 - 10 bar

Exhaust air set with hose for easy maintenance, see order no. 9861001010.

Translated with DeepL.com (free version)

Contacts
Wish List
Order Nr.

Colour
Operating pressure max.
Working range
PN
Connection
B
H
h1
h2
Body
 Medium Weight Specification Basket
9862050000
 blue 10 bar 0-10 10 Flange DN 50 273 mm 615 mm 590 mm 284 mm Steel 23,30 kg
9862050100
   10 bar 0-10 10 Flange DN 50 273 mm 615 mm 590 mm 284 mm 1.4571 19,40 kg
9862065000
 blue 10 bar 0-10 10 Flange DN 65 273 mm 615 mm 590 mm 284 mm Steel 0,00 kg
9862065100
   10 bar 0-10 10 Flange DN 65 273 mm 615 mm 590 mm 284 mm 1.4571 22,60 kg
9862080000
 blue 10 bar 0-10 10 Flange DN 80 273 mm 615 mm 590 mm 284 mm Steel 24,50 kg
9862080100
   10 bar 0-10 10 Flange DN 80 273 mm 615 mm 590 mm 284 mm 1.4571 20,50 kg
9862100000
 blue 10 bar 0-10 10 Flange DN 100 273 mm 615 mm 590 mm 284 mm Steel 25,40 kg
9862100100
   10 bar 0-10 10 Flange DN 100 273 mm 615 mm 590 mm 284 mm 1.4571 21,00 kg
