120-00

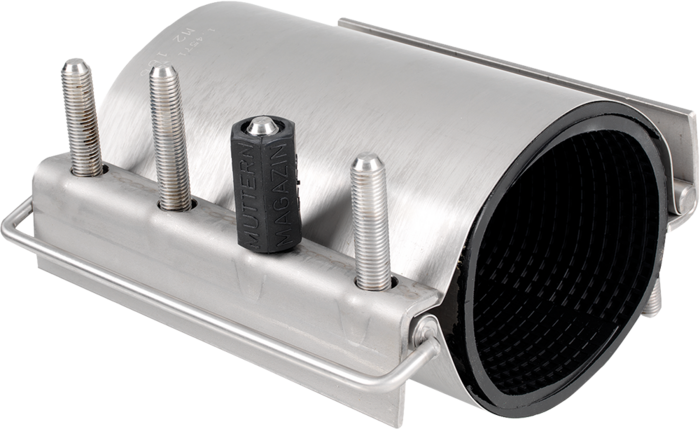

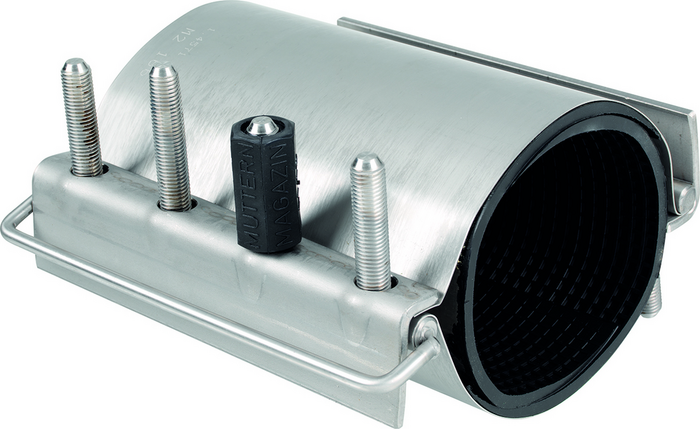

Stainless steel repair clamp, multiple tensioned

Repair and coupling clamp with self-centring locking system for DCI, steel, PVC and AC pipes

The bolts welded to the bolt bar provide for easy assembling by means of the handle. To facilitate installation, the central threaded pin is longer. The nuts can be screwed on easily from the supplied nut magazine, thus saving time
.
PLEASE NOTE: pipe repair and coupling clamps cannot be used to establish restraint connections!

Max. operating pressure water (standard):
d 87 - d 186: 16 bar
d 208 - d 430: 10 bar
d 430 - d 471: 6 bar

read more reduce

Material:	Clamp: stainless steel Bolts/nuts: stainless steel, molybdenum coated Gaskets: standard EPDM acc. to KTW-BWGL for water
Medium	Water / Sewage

Repair and coupling clamp with self-centring locking system for DCI, steel, PVC and AC pipes

Max. operating pressure water (standard):
d 87 - d 186: 16 bar
d 208 - d 430: 10 bar
d 430 - d 471: 6 bar

Contacts

Wish List

Models
Technical documents

Order Nr.	Operating pressure max.	d	Length	AC 10	AC 16	Steel	Cast Iron	PVC	For type of pipe	Type of pipe	Weight
1208720000	Waste water: 16 bar\|Potable water: 16 bar	87 - 102 mm	200 mm	80		80	80	90	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	2,50 kg
1210620000	Waste water: 16 bar\|Potable water: 16 bar	106 - 124 mm	200 mm		(80)	100	100	110	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	2,90 kg
1210631500	Waste water: 16 bar\|Potable water: 16 bar	106 - 124 mm	315 mm		(80)	100	100	110	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	6,00 kg
1210651000	Waste water: 16 bar\|Potable water: 16 bar	106 - 124 mm	510 mm		(80)	100	100	110	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	11,00 kg
1211420000	Waste water: 16 bar\|Potable water: 16 bar	114 - 132 mm	200 mm	100	(100)		100	125	Cast Iron\|PVC\|AC	Cast iron\|PVC\|AC	3,10 kg
1213220000	Waste water: 16 bar\|Potable water: 16 bar	132 - 152 mm	200 mm	(125)	(100)	125	125	140	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	4,60 kg
1213225000	Waste water: 16 bar\|Potable water: 16 bar	132 - 152 mm	250 mm	(125)	(100)	125	125	140	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	5,80 kg
1214220000	Waste water: 16 bar\|Potable water: 16 bar	142 - 162 mm	200 mm	125	(125)		(125)	160	Cast Iron\|PVC\|AC	Cast iron\|PVC\|AC	4,90 kg
1214225000	Waste water: 16 bar\|Potable water: 16 bar	142 - 162 mm	250 mm	125	(125)		(125)	160	Cast Iron\|PVC\|AC	Cast iron\|PVC\|AC	6,10 kg
1216020000	Waste water: 16 bar\|Potable water: 16 bar	160 - 180 mm	200 mm	(150)		150	150	160	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	5,00 kg
1216025000	Waste water: 16 bar\|Potable water: 16 bar	160 - 180 mm	250 mm	(150)		150	150	160	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	6,00 kg
1216031500	Waste water: 16 bar\|Potable water: 16 bar	160 - 180 mm	315 mm	(150)		150	150	160	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	7,80 kg
1216620000	Waste water: 16 bar\|Potable water: 16 bar	166 - 186 mm	200 mm	(150)		150	150	180	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	5,20 kg
1220825000	Waste water: 10 bar\|Potable water: 10 bar	208 - 230 mm	250 mm			200	200	225	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	6,60 kg
1220831500	Waste water: 10 bar\|Potable water: 10 bar	208 - 230 mm	315 mm			200	200	225	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	8,40 kg
1220838000	Waste water: 10 bar\|Potable water: 10 bar	208 - 230 mm	380 mm			200	200	225	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	10,10 kg
1221731500	Waste water: 10 bar\|Potable water: 10 bar	217 - 239 mm	315 mm	(200)		200	200	225	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	8,50 kg
1222031500	Waste water: 10 bar\|Potable water: 10 bar	220 - 242 mm	315 mm	(200)				225	PVC\|AC	PVC\|AC	8,50 kg
1223625000	Waste water: 10 bar\|Potable water: 10 bar	236 - 258 mm	250 mm		(200)		225	250	Cast Iron\|PVC\|AC	Cast iron\|PVC\|AC	7,00 kg
1223631500	Waste water: 10 bar\|Potable water: 10 bar	236 - 258 mm	315 mm		(200)		225	250	Cast Iron\|PVC\|AC	Cast iron\|PVC\|AC	8,80 kg
1223638000	Waste water: 10 bar\|Potable water: 10 bar	236 - 258 mm	380 mm		(200)		225	250	Cast Iron\|PVC\|AC	Cast iron\|PVC\|AC	10,50 kg
1226038000	Waste water: 10 bar\|Potable water: 10 bar	260 - 282 mm	380 mm				250	280	Cast Iron\|PVC\|AC	Cast iron\|PVC\|AC	11,00 kg
1227125000	Waste water: 10 bar\|Potable water: 10 bar	271 - 293 mm	250 mm	(250)		250	250	280	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	7,70 kg
1227131500	Waste water: 10 bar\|Potable water: 10 bar	271 - 293 mm	315 mm	(250)		250	250	280	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	9,40 kg
1227138000	Waste water: 10 bar\|Potable water: 10 bar	271 - 293 mm	380 mm	(250)		250	250	280	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	11,10 kg
1228631500	Waste water: 10 bar\|Potable water: 10 bar	286 - 308 mm	315 mm	(250)	(250)				AC	AC	9,70 kg
1230625000	Waste water: 10 bar\|Potable water: 10 bar	306 - 328 mm	250 mm		(250)	300	300	315	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	8,20 kg
1230631500	Waste water: 10 bar\|Potable water: 10 bar	306 - 328 mm	315 mm		(250)	300	300	315	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	10,00 kg
1230638000	Waste water: 10 bar\|Potable water: 10 bar	306 - 328 mm	380 mm		(250)	300	300	315	Cast Iron\|PVC\|Steel\|AC	Cast iron\|PVC\|Steel\|AC	11,80 kg
1233038000	Waste water: 10 bar\|Potable water: 10 bar	330 - 352 mm	380 mm	(300)					AC	AC	12,20 kg
1234625000	Waste water: 10 bar\|Potable water: 10 bar	346 - 368 mm	250 mm		(300)	350		355	PVC\|Steel\|AC	PVC\|Steel\|AC	8,70 kg
1234638000	Waste water: 10 bar\|Potable water: 10 bar	346 - 368 mm	380 mm		(300)	350		355	PVC\|Steel\|AC	PVC\|Steel\|AC	12,50 kg
1236938000	Waste water: 10 bar\|Potable water: 10 bar	369 - 392 mm	380 mm		(300)		350		Cast Iron\|AC	Cast iron\|AC	13,00 kg
1239031500	Waste water: 10 bar\|Potable water: 10 bar	390 - 414 mm	315 mm	(350)		400		400	PVC\|Steel\|AC	PVC\|Steel\|AC	11,10 kg
1239038000	Waste water: 10 bar\|Potable water: 10 bar		380 mm	(350)		400		400	PVC\|Steel\|AC	PVC\|Steel\|AC	13,20 kg
1240625000	Waste water: 10 bar\|Potable water: 10 bar	406 - 430 mm	250 mm		(350)	400			Steel\|AC	Steel\|AC	9,00 kg
1240631500	Waste water: 10 bar\|Potable water: 10 bar	406 - 430 mm	315 mm		(350)	400			Steel\|AC	Steel\|AC	11,10 kg
1240638000	Waste water: 10 bar\|Potable water: 10 bar	406 - 430 mm	380 mm		(350)	400			Steel\|AC	Steel\|AC	13,20 kg
1242531500	6 bar	425 - 448 mm	315 mm		(350)		400		Cast Iron\|AC	Cast iron\|AC	11,50 kg
1242538000	6 bar	425 - 448 mm	380 mm		(350)		400		Cast Iron\|AC	Cast iron\|AC	13,70 kg
1244825000	6 bar	448 - 471 mm	250 mm	(400)				450	PVC\|AC	PVC\|AC	9,50 kg
1244831500	6 bar	448 - 471 mm	315 mm	(400)				450	PVC\|AC	PVC\|AC	11,70 kg
1244838000	6 bar	448 - 471 mm	380 mm	(400)				450	PVC\|AC	PVC\|AC	13,90 kg

Wish List

: Other nominal widths and dimensions on request.
: () Values in brackets do not cover the whole tolerance range of the specified pipe. This applies especially to the widely varying diameters of AC pipes.
