204-01

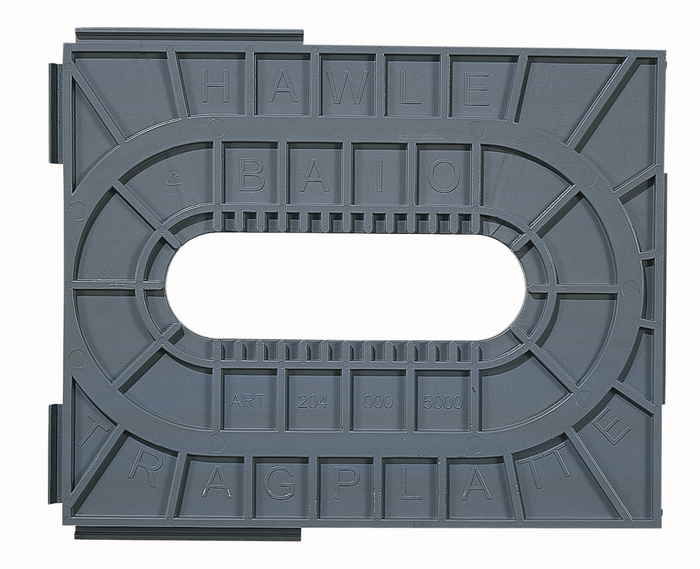

BAIO® base plate for gate valve surface box
| Material: | Polyamide, glass fibre reinforced |
|---|---|
| Medium | Water / Gas / Sewage |
The BAIO® base plate for gate valve surface boxes (model no. 200-00, model no. 200-01, model no. 200-02, model no. 207-01) serves the purpose of centring the surface boxes and reliably fixing the Hawle telescopic extension spindles in case of confined installation situations (e.g. double junctions).
The base plate is made of break-proof, stable and rot-proof material. The low weight of the base plate ensures an easy and uncomplicated installation.
Without much effort, the individual base plates can be assembled as needed for the respective installation situation.
Installation height: 23 mm
|
Order Nr.
|
L |
L1 |
B |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|
|
2040005000
|
400 mm | 172 mm | 320 mm | 0,89 kg |
|
Operating instructions
|
|---|
| Operating and maintenance instructions - BAIO® - System |
|
Brochures
|
|---|
| Brochure - Hawle Product Range |
|
Article Nr.
|
Product description |
|---|---|
| 200-00 | Surface box rigid version |
| 207-01 | Surface box for gate valves with cover, for rolling in |
