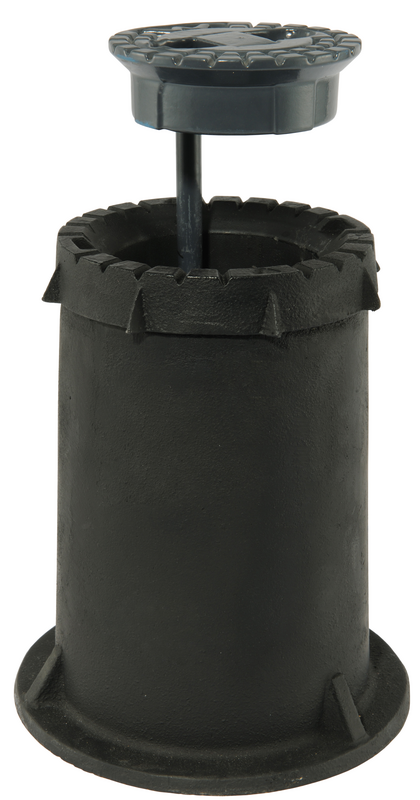

Surface box for gate valves with cover, for rolling in

The Hawle gate valve surface box for rolling in is to be used for installation in bituminous traffic areas. The drawing ring permits a large adjusting range.

Prior to rolling in, the drawing ring shall be pulled upward approx. 1-2 cm above the level of the asphalt covering and backfilled with asphalt. During rolling in a bond is created between the drawing ring and the asphalt. Thus the traffic load is discharged into the base course. Due to this bond the surface box and the road covering remain at the same level.

Compared to conventional surface boxes the angle seat at the cover and the box reduces the rattling tendency of the cover.

To avoid contact corrosion between the cover and the box, on the one hand, and to ensure that the cover comes loose easily, on the other hand, the latter is powder-coated.

Material: Surface box: GJL-200, bituminized
Drawing ring: GJL-250, bituminized
Cover: GJS-400, Hawle epoxy powder coated
Positioning pin: stainless steel
Medium Water / Gas / Sewage
Order Nr.

Cover inscription

d 1


d 2

Medium Weight Specification Basket
W   Sparepart: Cover for "Surface box for gate valve"     3,56 kg
W 270 mm cap complete 195 mm 260-440 mm 19,70 kg
Gas 270 mm cap complete 195 mm 260-440 mm 19,70 kg
AW 270 mm cap complete 195 mm 260-440 mm 19,70 kg
    Niro-Splint 3,2 x 25 mm     0,03 kg
          0,01 kg
Wish List

Accessories for easier height adjustment during installation: brake ring, model no. 2071000050 (200-03)
