- 1)
- suitable for Tele-Hydrant® order no. 492-00
- 2)
- suitable for Tele-Hydrant® set "Berlin" order no. 492-01, the Tele-Hydrant® surface box version lockable can only be opened with the special operating key oder no. 206-06
- 3)
- The surface box for rolling is is to be used in combination with the flood protection for the AVS order no. 993-01.

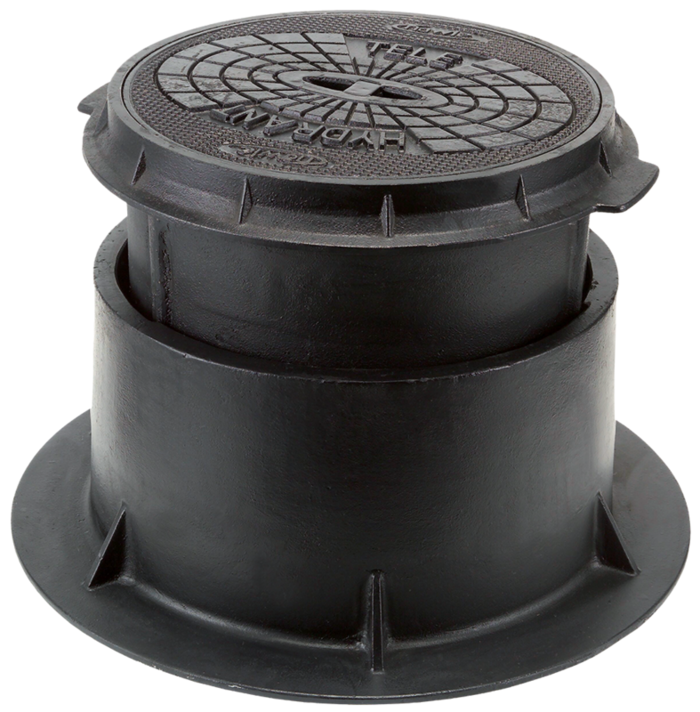

206-02
Surface box for Tele-Hydrant® and AVS "993-00" for rolling in, with locking bolt
| Material: |
Surface box, drawing ring, cover: GJL-250, primed and black lacquered Positioning pin: stainless steel Absorber ring: NBR |
|---|---|
| Medium | Water |
The Hawle surface box for rolling in for Tele-Hydrants and AVS 993-00 is to be used for installation in bituminous traffic areas. The drawing ring permits a large adjusting range.
During rolling in a bond is created between the drawing ring and the asphalt. Thus the traffic load is discharged into the base course. This bond ensures that the surface box remains on the same level as the road surface.
The absorber ring prevents contact corrosion between the cover and the box, on the one hand, and ensures easy loosening and reduced rattling tendency of the cover, on the other hand. The lid is connected to the surface box by means of a locking bolt with cotter pin and washer.
Tele-Hydrant® surface box, lockable version: unauthorised operation is impossable thanks to the integrated locking unit.
|
Order Nr.
|
*) |
d 1 |
d 2 |
d 3 |
h1 |
h2 |
Cover inscription |
Description |
S max. |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2060810000
|
1) | 650 mm | 423 mm | 540 mm | 260 mm | 50 mm | Telehydrant | Cap complete | 40 mm - 160 mm | 97,39 kg | |||
|
2060810100
|
3) | 650 mm | 423 mm | 540 mm | 260 mm | 50 mm | Be- und Entlüftung | Cap complete | 40 mm - 160 mm | 97,39 kg | |||
|
2060812000
|
2) | 650 mm | 423 mm | 540 mm | 260 mm | 50 mm | Telehydrant | Cap complete Version locking | 40 mm - 160 mm | 102,50 kg |
