212-01

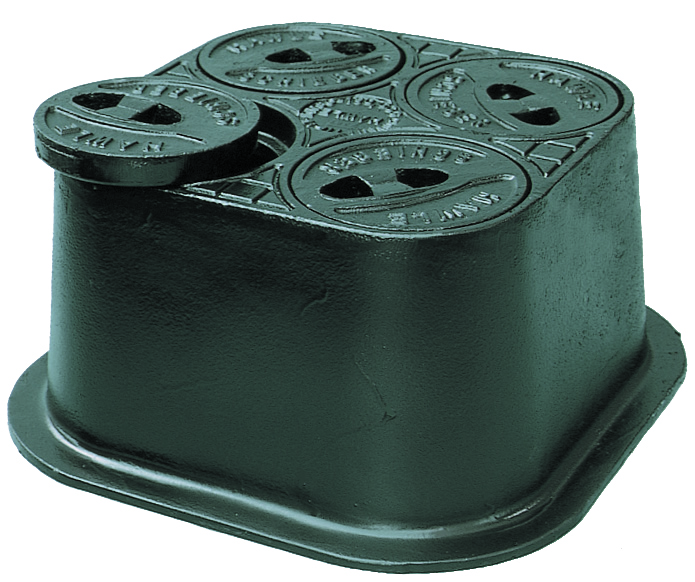

Surface box for Hawle gate valves Combi-III and Combi-IV
| Material: |
Body: GJS-400, bituminized Locking pin: stainless steel |
|---|---|
| Medium | Water |
The surface box model no. 212-01 is to be used preferably for installation in paved traffic areas.
In the square coverings four lids with locking pins are integrated.
The surface box can be used for Hawle gate valves Combi-III and Combi-IV "E3" DN 80 - DN 200.
|
Order Nr.
|
L1 |
L2 |
h1 |
Description |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|
|
2120800000
|
420 mm | 325 mm | 200 mm | for Combi "E3" DN 80 | 34,00 kg | |||
|
2122000000
|
545 mm | 460 mm | 200 mm | for Combi "E3" DN 100 - 200 | 63,30 kg |
|
Further information
|
|---|
| General instruction for Surface boxes / Manhole cover |
|
Article Nr.
|
Product description |
|---|---|
| 204-07 | Multiple base plate and surface box for Combi-III and Combi-IV gate valves "E2" |
