Product numbers and prices for version "D" (Hawlinger® 1 1 /2" with sealing surface) on request
229-00

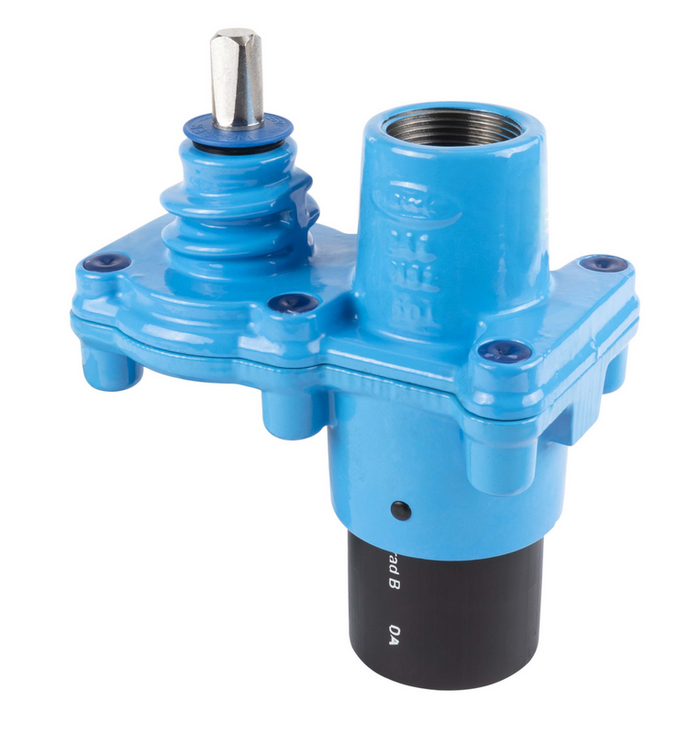

Hawlinger with upper vertical female thread outlet
| Material: |
Housing: GJS-400, Hawle epoxy powder coating Spindle, sheave drive, washer: stainless steel Weld-on socket: PE Seals: EPDM acc. to KTW-BWGL for water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Hawlingers with lower PE fusion ends are to be used for welding into electrofusion saddles for electrofusion sockets with push-in connection d 63 mm.
The upper female thread outlet in accordance with DIN ISO 228-1 is used in combination with fittings to connect service lines.
All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.
To open or close the outlet area only one half revolution (180°) is required.
In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.
|
Order Nr.
|
Operating pressure max. |
Description |
L |
L1 |
B |
D |
H |
Borehole max. |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2290320630
|
Potable water: 16 bar | 165 mm | 68 mm | 102 mm | 63 mm | 175 mm | 24 mm | female thread 1" | 3,50 kg | ||||
|
2290400630
|
Potable water: 16 bar | 165 mm | 68 mm | 102 mm | 63 mm | 175 mm | 24 mm | female thread 1 1/4" | 3,80 kg | ||||
|
2290500630
|
Potable water: 16 bar | 195 mm | 82 mm | 125 mm | 63 mm | 175 mm | 36 mm | female thread 1 1/2" | 4,70 kg | ||||
|
2400000009
|
drainage fuction on request | 0,00 kg | |||||||||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
|
Further information
|
|---|
| General instruction for Pipe drilling saddle |
|
Technical Documents
|
|---|
| declaration-of-conformity-other-fittings_3 |
|
Operating instructions
|
|---|
| Operating and maintenance instructions - Pipe drilling saddle Hawlinger mit PE-fusion end |
