229-01

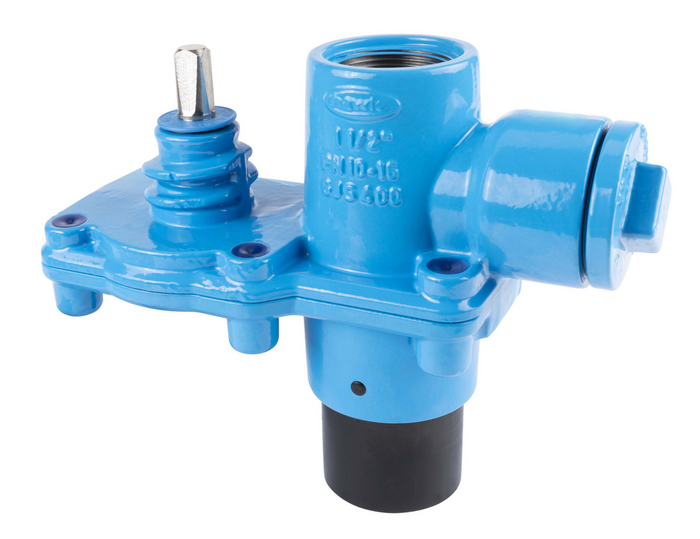

Weld-in Hawlinger with horizontal internal thread Outlet in the direction of the pipe
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle, shut-off device, shut-off blade: stainless steel Fusion end: PE Gaskets: EPDM acc. to KTW-BWGL for potable water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Weld-in hawlinger with lower PE sockets are for welding in welding clamps for electric weld sockets with plug-in connection D 63 mm.
The upper internal thread outlets according to DIN ISO 228-1 are used in combination with fittings for the connection of house connection cables.
With all Hawle Hawlinger® tapping fittings, the shut-off is provided by a gate-driven plug-in disc made of stainless steel. The plug-in washer is moved horizontally in a housing with low wear and tear against fixed, metallic stops.
To open or close the passageway, only a half-turn (180°) is required.
In combination with a tapping device (e.g. Hawle tapping device HAWLOMAT, order no. 830-00), the shut-off system enables simple, problem-free drilling of the main line, even in operating condition.
|
Order Nr.
|
Operating pressure max. |
Description |
L |
L1 |
B |
H |
Borehole max. |
Outlet O |
D |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2291320630
|
Potable water: 16 bar | 167 mm | 68 mm | 102 mm | 180 mm | 24 mm | female thread 1" | 63 mm | 4,20 kg | ||||
|
2291400630
|
Potable water: 16 bar | 167 mm | 68 mm | 102 mm | 180 mm | 24 mm | female thread 1 1/4" | 63 mm | 4,50 kg | ||||
|
2291500630
|
Potable water: 16 bar | 230 mm | 82 mm | 125 mm | 196 mm | 36 mm | female thread 1 1/2" | 63 mm | 5,70 kg | ||||
|
2400000009
|
drainage fuction on request | 0,00 kg | |||||||||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
|
Further information
|
|---|
| General instruction for Pipe drilling saddle |
|
Operating instructions
|
|---|
| Operating and maintenance instructions - Pipe drilling saddle Hawlinger mit PE-fusion end |
