229-03G

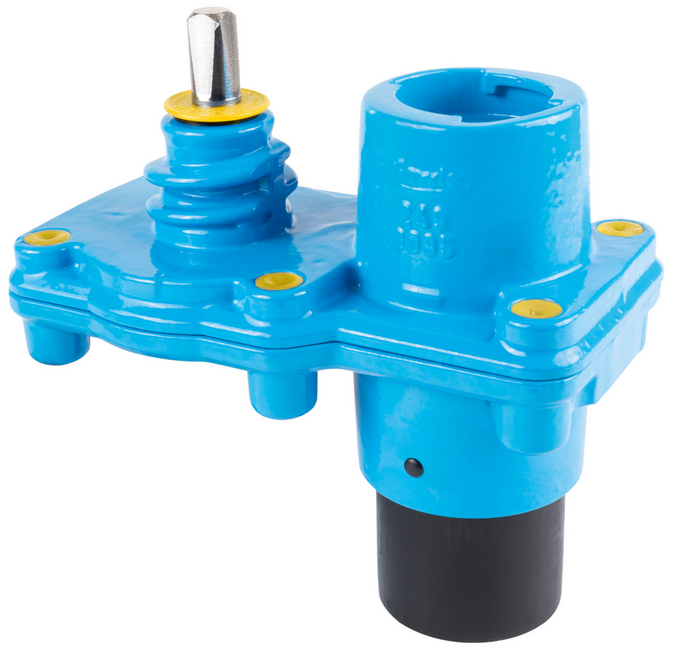

Weld-in Hawlinger for Gas with Vertical ZAK® Socket
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle, shut-off device, shut-off blade: stainless steel Fusion end: PE-X Gaskets: NBR for gas |
|---|---|
| Max. operating Pressure: | Gas: 5 bar |
| Medium | Gas |
Weld-in hawlers with lower PE nozzles are for welding in weld clamps with electric weld sockets with plug-in connection D 63 mm.
The vertical ZAK® joint outlet is used in combination with ZAK® tip end fittings for connecting house connection pipes.
With all Hawle Hawlinger® tapping fittings, the shut-off is provided by a gate-driven plug-in disc made of stainless steel. The plug-in washer is moved horizontally in a housing with low wear and tear against fixed, metallic stops.
To open or close the passageway, only a half-turn (180°) is required.
In combination with a tapping device suitable for gas, the shut-off system enables easy drilling of a pipeline, even in operating condition.
Spindle square: 12.3 mm
|
Order Nr.
|
Operating pressure max. |
Description |
L |
B |
D |
H |
Borehole max. |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2293500635
|
Gas: 5 bar | 195 mm | 125 mm | 63 mm | 193 mm | 36 mm | ZAK 46 | 4,70 kg | ||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
|
