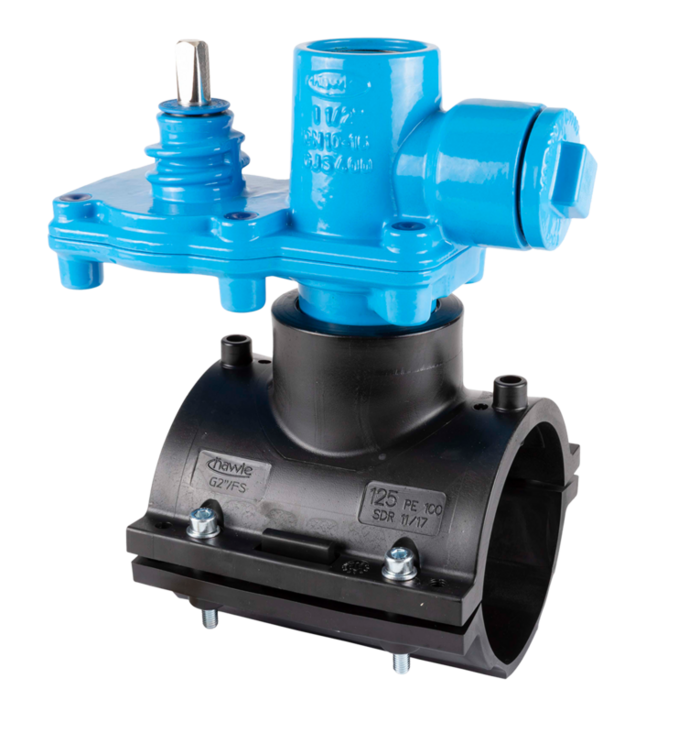

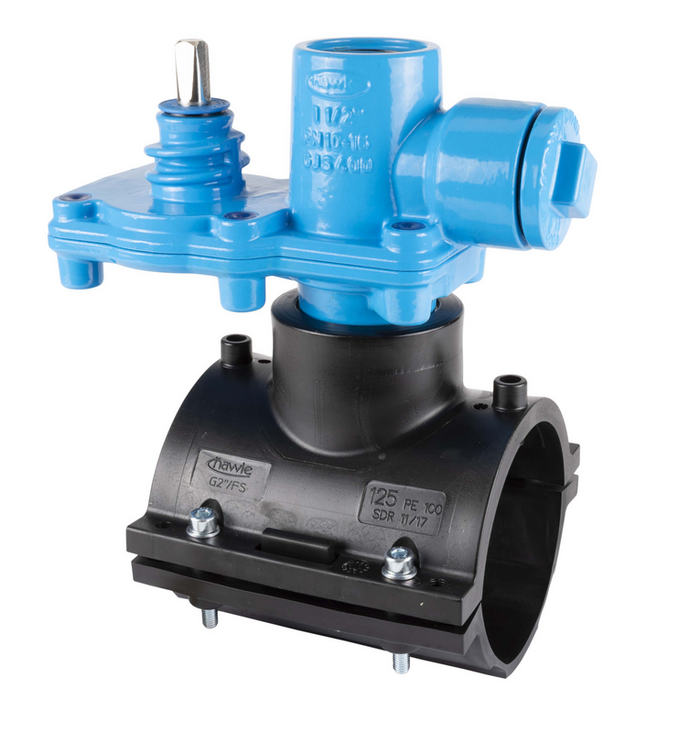

Hawlinger with upper horizontal female thread outlet in pipe direction

Weld-on hawlingers with HA-WELD® welding saddle are to be used for welding on PE pipes (EN 12201, DIN 8074).

The upper internal thread outlets according to DIN ISO 228-1 are used in combination with fittings for the connection of house connection cables.

With all Hawle Hawlinger® tapping fittings, the shut-off is provided by a gate-driven plug-in disc made of stainless steel. The plug-in washer is moved horizontally in a housing with low wear and tear against fixed, metallic stops.

To open or close the passageway, only a half-turn (180°) is required.

In combination with a tapping device (e.g. Hawle tapping device HAWLOMAT, order no. 830-00), the shut-off system enables simple, problem-free drilling of the main line, even in operating condition.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device, shut-off blade: stainless steel
Gaskets: EPDM acc. to KTW-BWGL for water
Electrofusion saddle HA-WELD®: PE 100
Max. operating Pressure: Potable water: 16 bar
Medium Water

Weld-on hawlingers with HA-WELD® welding saddle are to be used for welding on PE pipes (EN 12201, DIN 8074).

The upper internal thread outlets according to DIN ISO 228-1 are used in combination with fittings for the connection of house connection cables.

With all Hawle Hawlinger® tapping fittings, the shut-off is provided by a gate-driven plug-in disc made of stainless steel. The plug-in washer is moved horizontally in a housing with low wear and tear against fixed, metallic stops.

To open or close the passageway, only a half-turn (180°) is required.

In combination with a tapping device (e.g. Hawle tapping device HAWLOMAT, order no. 830-00), the shut-off system enables simple, problem-free drilling of the main line, even in operating condition.

Contacts
Wish List
Order Nr.

Operating pressure max.
Description
L

L1
B
D
H1
Borehole max.
For type of pipe
Outlet O
 Medium Weight Specification Basket
2350630410
 Potable water: 16 bar   170 mm 68 mm 105 mm 63 mm 150 mm 24 mm PE female thread 1 1/4" 4,50 kg
2350900510
 Potable water: 16 bar   220 mm 82 mm 160 mm 90 mm 170 mm 36 mm PE female thread 1 1/2" 7,60 kg
2351100510
 Potable water: 16 bar   220 mm 82 mm 170 mm 110 mm 170 mm 36 mm PE female thread 1 1/2" 7,70 kg
2351250510
 Potable water: 16 bar   220 mm 82 mm 190 mm 125 mm 185 mm 36 mm PE female thread 1 1/2" 7,90 kg
2351600510
 Potable water: 16 bar   220 mm 82 mm 230 mm 160 mm 175 mm 36 mm PE female thread 1 1/2" 8,20 kg
2351800510
 Potable water: 16 bar   220 mm 82 mm 245 mm 180 mm 180 mm 36 mm PE female thread 1 1/2" 8,40 kg
2352250510
 Potable water: 16 bar   220 mm 82 mm 255 mm 225 mm 175 mm 36 mm PE female thread 1 1/2" 8,70 kg
2400000009
   drainage fuction on request                 0,00 kg
8700000000
   Surcharge for spindle bore                 0,00 kg
Wish List
1)
With FRIALEN® fusion saddle

Product numbers and prices for version "D" (Hawlinger® 1 1 /2" with sealing surface) on request
