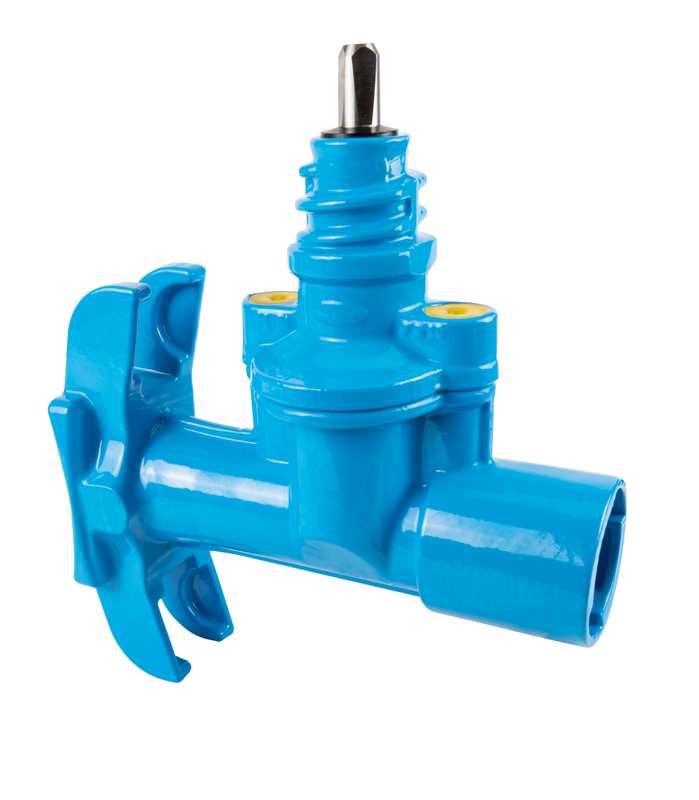

Valve saddle with ZAK® outlet


Material: |
Body and bonnet: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Shut-off plug: brass, NBR for gas |
---|---|
Max. operating Pressure: | Gas: 5 bar |
Medium | Gas |
Hawle valve saddles are to be used for lateral installation on DCI, steel, and AC pipes DN 65 - DN 500. Adaptation to the main pipe is effected via holding strap and saddle gasket (model no. 310-00G or 314-01) of the appropriate nominal width.
In combination with fittings the lateral ZAK® outlet is used to connect service lines after drilling.
Spindle square: 12.3 mm
Order Nr.
|
Operating pressure max. |
Description |
L |
B |
H |
Square of spindle |
Borehole max. |
Outlet O |
Medium | Weight | Specification | Basket |
---|---|---|---|---|---|---|---|---|---|---|---|---|
2701460005
|
5 bar | 241 mm | 105 mm | 289 mm | 12,3 mm | 36 mm | ZAK 46 | 5,50 kg | ||||
8700000000
|
Surcharge for spindle bore | 0,00 kg |
Article Nr.
|
Product description |
---|---|
310-00G | Hawle strap - fully vulcanized |
314-01 | special saddle seal for drilling diameter 56 mm |
