298-01
Flushing and construction water connection to Hawle water meter shaft 2.0

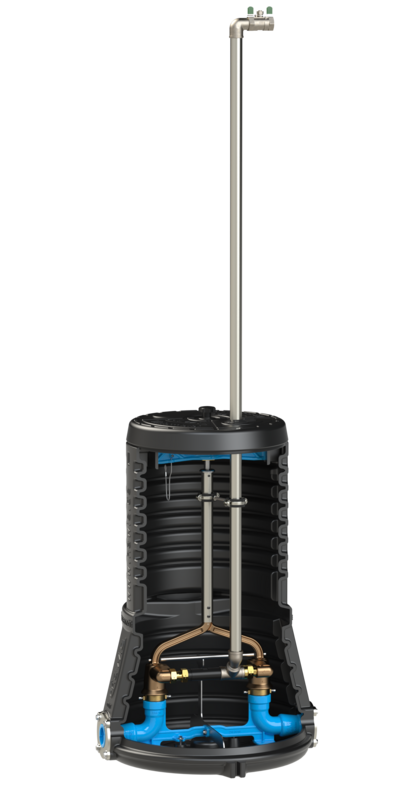

In combination with the Hawle water meter shaft 2.0, the flushing and construction water connection can be used for water extraction (e.g., on construction sites) and for flushing house connection pipes.
The flushing and construction water connection can also be used as a suction connection for
connections that are to be shut down (see operating instructions).

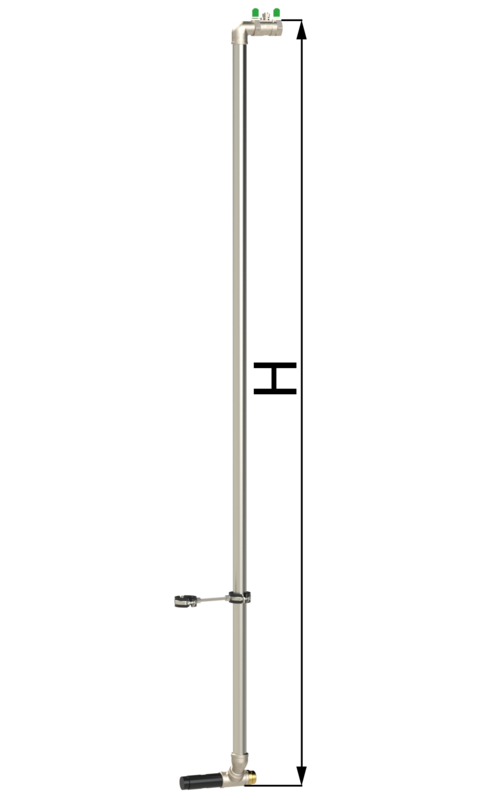

The flushing and construction water connection consists of a standpipe, a ball valve, and
a screw connection with 2 x male thread 1" and is connected between the meter assembly of the water meter shaft
instead of the water meter.

Please note: No water meter, system separator,or backflow preventer is integrated. These must be provided by the customer.

The shaft cover, order no. 298 900 0555, for Hawle water meter shaft 2.0 for flushing and construction water connection must be used when using the flushing and construction water connection.
