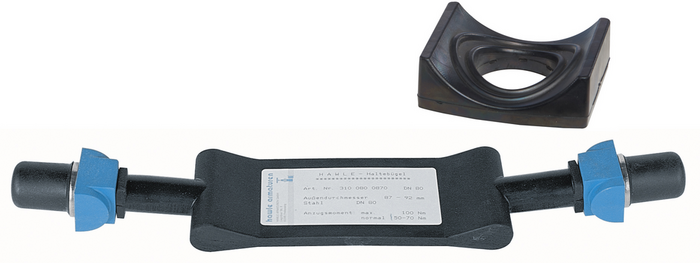

Hawle strap - fully vulcanized

Hawle brackets (fully vulcanized) are used for the safe and ground-free mounting of tapping and slide clamps on cast iron and steel pipes (see table).

The particularly wide support of 70 mm ensures minimal surface pressure on the pipe (DIN 3543-2:1984, which has since been withdrawn, provided for a support width of 50 mm for steel and cast iron pipes).

The saddle seal supplied compensates for the respective tube diameter to the tapping clamp and thus reliably seals the drilling.
Note on double stirrup clamps: Two stirrups (retaining pieces) and a special saddle seal are always necessary - please specify when ordering!

read more reduce
Material: Strap plate: stainless steel fully vulcanized
Threaded pin: stainless steel
Nuts: stainless steel
Gripping jaws: glass fibre reinforced polyamide
Saddle gasket: EPDM acc. to KTW-BWGL for water
Medium Water / Sewage

Hawle brackets (fully vulcanized) are used for the safe and ground-free mounting of tapping and slide clamps on cast iron and steel pipes (see table).

The particularly wide support of 70 mm ensures minimal surface pressure on the pipe (DIN 3543-2:1984, which has since been withdrawn, provided for a support width of 50 mm for steel and cast iron pipes).

The saddle seal supplied compensates for the respective tube diameter to the tapping clamp and thus reliably seals the drilling.
Note on double stirrup clamps: Two stirrups (retaining pieces) and a special saddle seal are always necessary - please specify when ordering!

Contacts
Wish List
Order Nr.
*)
d
Steel
Cast Iron
CI - PE
Steel-PE
Steel-PE-FZM
For type of pipe
Type of pipe
ZMU
 Medium Weight Specification Basket
3100800870
   87 - 92 mm 80         Cast Iron|Steel Cast iron|Steel   0,97 kg
3100800960
   95 - 103 mm   80 80     Cast Iron|Steel Cast iron|Steel   0,90 kg
3100800980
 1) 96 - 103 mm     80     Cast Iron|Steel Cast iron|Steel   1,18 kg
3100801090
   104 - 114 mm 100         Cast Iron|Steel Cast iron|Steel 80 1,26 kg
3101001150
 1) 112 - 120 mm 100 100   100   Cast Iron|Steel Cast iron|Steel   1,28 kg
3101001190
 1) 117 - 125 mm     100     Cast Iron|Steel Cast iron|Steel   1,28 kg
3101001250
   123 - 133 mm         100 Cast Iron|Steel Cast iron|Steel 100 1,34 kg
3101251440
 1) 139 - 150 mm 125 125 125 125 100 Cast Iron|Steel Cast iron|Steel   1,40 kg
3101251490
   149 - 162 mm 150       125 Cast Iron|Steel Cast iron|Steel 125 1,47 kg
3101501690
 1) 165 - 173 mm 150 150   150 125 Cast Iron|Steel Cast iron|Steel   1,48 kg
3101501720
   172 - 180 mm     150 150   Cast Iron|Steel Cast iron|Steel 150 1,48 kg
3101501870
   178 - 187 mm         150 Cast Iron|Steel Cast iron|Steel 150 1,25 kg
3102002200
 1) 217 - 225 mm 200 200   200   Cast Iron|Steel Cast iron|Steel   1,60 kg
3102002280
   228 - 235 mm           Steel|Cast Iron Steel|Cast iron 200 1,68 kg
3102002390
   239 - 247 mm         200 Cast Iron|Steel Cast iron|Steel   1,75 kg
3102502720
   272 - 280 mm 250 250 250 250   Cast Iron|Steel Cast iron|Steel   1,85 kg
3102502900
   290 - 300 mm         250 Cast Iron|Steel Cast iron|Steel   1,94 kg
3103003250
   325 - 333 mm 300 300 300 300   Cast Iron|Steel Cast iron|Steel   2,00 kg
3103003400
   340 - 350 mm         300 Cast Iron|Steel Cast iron|Steel 300 2,10 kg
3103503690
   369 - 380 mm   350     350 Cast Iron|Steel Cast iron|Steel   2,20 kg
3104004220
   422 - 435 mm   400 400   400 Cast Iron|Steel Cast iron|Steel   2,40 kg
3104004650
   465 - 470 mm           Cast Iron|Steel Cast iron|Steel   2,52 kg
Wish List
1)
Also available as packaging unit.

Note: The application ranges (DN) specified in the table as a function of the kind of pipe and the pipe outside diameter are only intended as assistance. Prior to ordering, the actual outside diameter of the pipeline should be checked.

Note on double stirrup clamps: Two stirrups (retaining pieces) and a special saddle seal are always necessary - please specify when ordering!
