318-00G

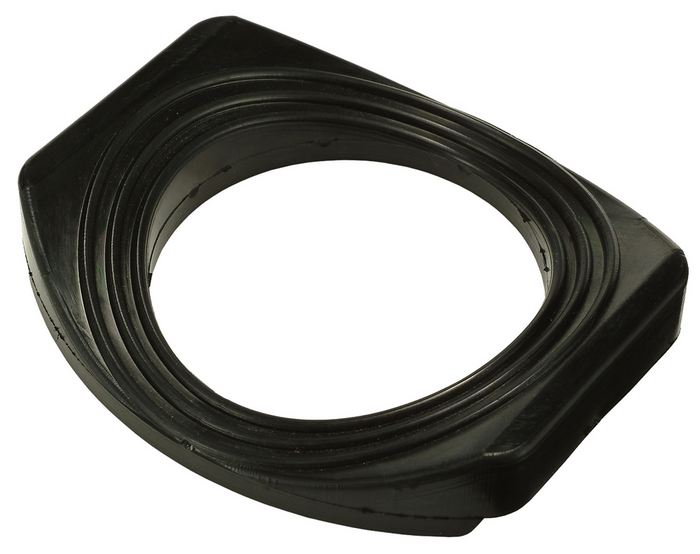

Saddle gasket for double bow clamp with flange DN 100 for gas
| Material: | NBR |
|---|---|
| Medium | Gas |
Saddle seals for double bow clamps with flange DN 100 in combination with Hawle brackets (order no. 310-00G) ensure a reliable seal when connected to cast iron, steel or AZ pipes.
The maximum possible drilling diameter depends on the type of clamp and the outer diameter of the pipe - see order no. 359-01.
Note on double bracket clamps: Two brackets (retaining pieces) are always necessary - please specify when ordering!
|
Order Nr.
|
Pipe DN |
For type of pipe |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|
|
3182010000
|
200 | AC|Cast Iron|Steel | 0,20 kg | |||
|
3182510000
|
250 | AC|Cast Iron|Steel | 0,15 kg | |||
|
3183010000
|
300 | AC|Cast Iron|Steel | 0,15 kg | |||
|
3183510000
|
350 | AC|Cast Iron|Steel | 0,10 kg | |||
|
3184010000
|
400 | AC|Cast Iron|Steel | 0,10 kg | |||
|
3184510000
|
450-500 | AC|Cast Iron|Steel | 0,10 kg |
|
Further information
|
|---|
| General instruction for Pipe drilling saddle |
