372-00

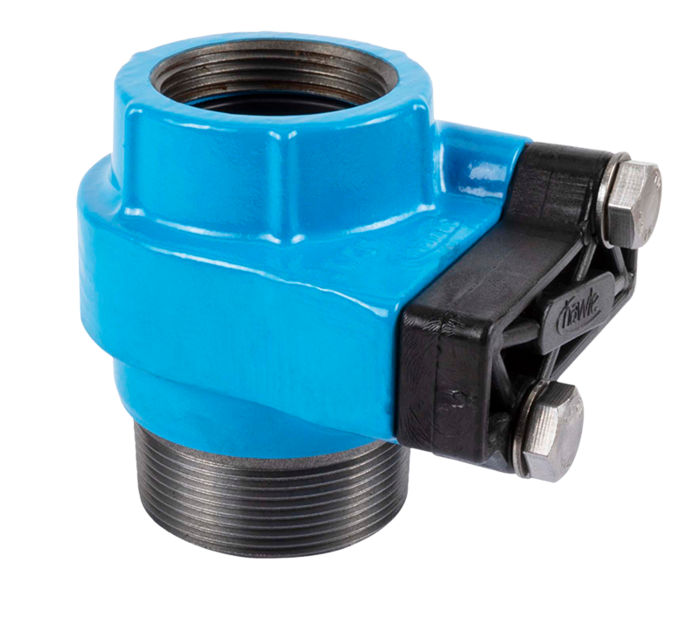

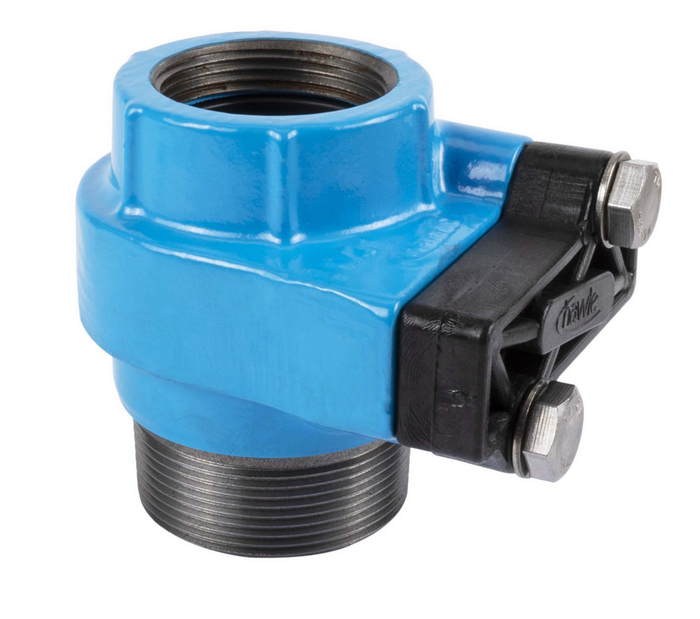

Shut-off adaptor with threaded outlet
| Material: | GJS-400, Hawle epoxy powder coated |
|---|---|
| Max. operating Pressure: |
Sewage water: 16 bar Potable water: 16 bar |
| Medium | Water / Sewage |
Shut-off adaptors with auxiliary shut-off device, upper female thread outlet and lower male thread outlet are to be used in combination with pipe saddles or tapping bridges.
In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system with integrated auxiliary shut-off device permits the easy under pressure drilling of the main line.
On drilling, the outlet area is temporarily shut off via a shut-off blade / saddle blade
(model no. 840-00) after pulling out the drilling spindle. The saddle blade is available as accessory. After drilling, valves and fittings can be connected.
|
Order Nr.
|
*) |
Lower outlet |
Description |
Upper outlet |
H |
Borehole max. |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
3720320000
|
1) | male thread 1 1/4" conical | female thread 1" | 85 mm | 25 mm | 0,95 kg | ||||
|
3720400000
|
1) | male thread 1 1/2" conical | female thread 1 1/4" | 90 mm | 31 mm | 1,25 kg | ||||
|
3720500000
|
2) | male thread 2" conical | female thread 1 1/2" | 95 mm | 36 mm | 1,65 kg | ||||
|
3720630000
|
2) | male thread 2" conical | female thread 2" | 100 mm | 40 mm | 1,80 kg | ||||
|
3720630750
|
3) 4) | female thread 2 1/2" | female thread 2" | 90 mm | 56 mm | 2,10 kg | ||||
|
8400005063
|
shut-off blade 1 1/2" - 2" / ZAK 46 | 0,25 kg | ||||||||
|
8400006300
|
shut-off blade 2 1/4" / Shut off adapter ZAK 69 | 0,20 kg |
|
Technical Documents
|
|---|
| declaration of conformity other fittings |
|
Article Nr.
|
Product description |
|---|---|
| 830-00 | Pipe drilling device "Hawlomat" |
| 840-00 | Shut-off blade (saddle blade) |
