Female thread 3/4" at body, for manometer, ball valve, etc. - on request
-
Version for manhole installation on request.
-
Suitable formwork pipe for Combi valves on request.
440-00

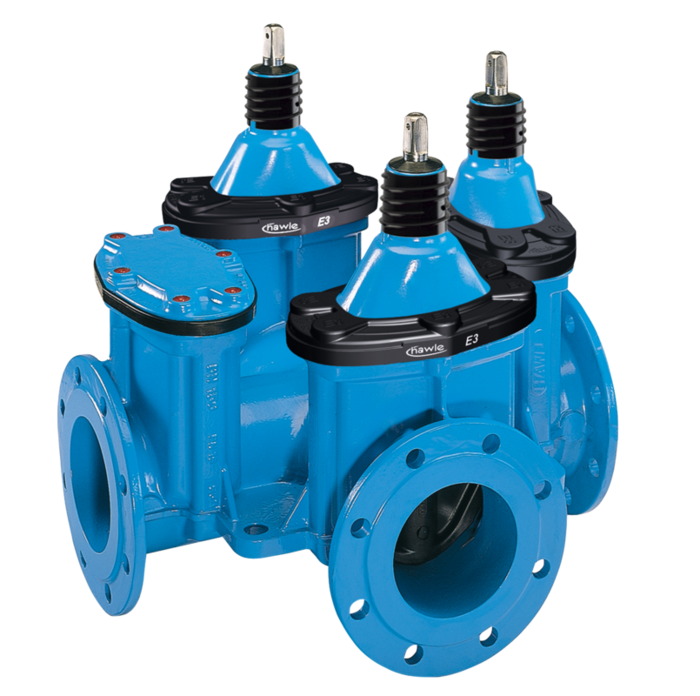

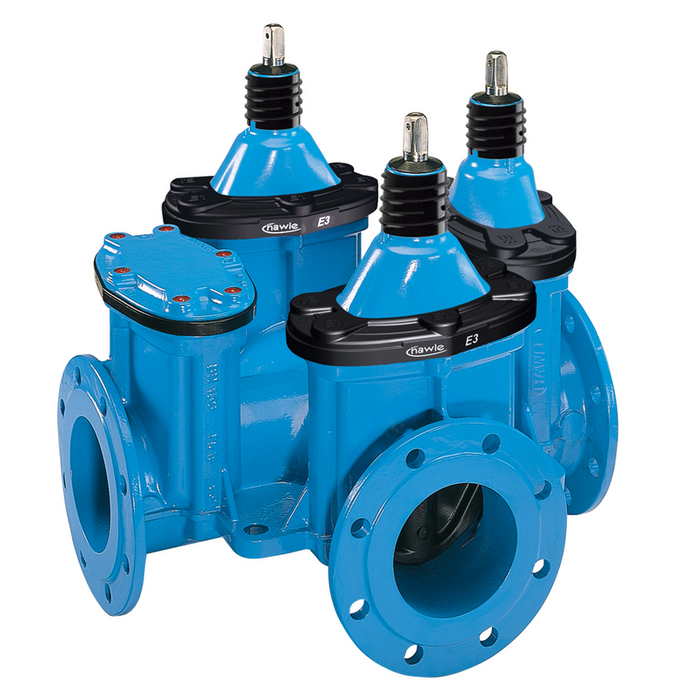

Combi-IV gate valve with flanges
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Wedge nut: brass Wedge: GJS-400, EPDM inside and outside for potable water Gaskets: EPDM for potable water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Combi-IV gate valve with flanges at all ends. For the installation of valve junctions with up to 4 gate valves in confined space.
The compact design affords major savings in material, labour, transport, and storage costs. If no shut-off is required at one or more outlets, a blind cover can be factory preinstalled - Please specify clock position.
Delivered with round thread adaptor for the pinless fixing of Hawle extension spindles. square end cap for manhole installation on request.
Flange dimensions: acc. to EN 1092-2
|
Order Nr.
|
DN |
PN |
Type / Outlet |
L |
B |
H1 |
Numbers of gate valves |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
4400802000
|
80 | 10|16 | Typ E3 | 435 mm | 255 mm | 315 mm | 2 | 71,00 kg | |||
|
4400803000
|
80 | 10|16 | Typ E3 | 435 mm | 255 mm | 315 mm | 3 | 73,00 kg | |||
|
4400804000
|
80 | 10|16 | Typ E3 | 435 mm | 255 mm | 315 mm | 4 | 75,00 kg | |||
|
4401002000
|
100 | 10|16 | Typ E3 | 555 mm | 365 mm | 345 mm | 2 | 90,00 kg | |||
|
4401003000
|
100 | 10|16 | Typ E3 | 555 mm | 365 mm | 345 mm | 3 | 93,00 kg | |||
|
4401004000
|
100 | 10|16 | Typ E3 | 555 mm | 365 mm | 345 mm | 4 | 96,00 kg | |||
|
4401252000
|
125 | 10/16 | Typ E3 | 615 mm | 415 mm | 420 mm | 2 | 112,00 kg | |||
|
4401253000
|
125 | 10|16 | Typ E3 | 615 mm | 415 mm | 420 mm | 3 | 116,00 kg | |||
|
4401254000
|
125 | 10|16 | Typ E3 | 615 mm | 415 mm | 420 mm | 4 | 123,00 kg | |||
|
4401502000
|
150 | 10|16 | Typ E3 | 625 mm | 415 mm | 435 mm | 2 | 144,00 kg | |||
|
4401503000
|
150 | 10|16 | Typ E3 | 625 mm | 415 mm | 435 mm | 3 | 152,00 kg | |||
|
4401504000
|
150 | 10|16 | Typ E3 | 625 mm | 415 mm | 435 mm | 4 | 153,00 kg | |||
|
4402002000
|
200 | 10 | Typ E3 | 695 mm | 465 mm | 540 mm | 2 | 223,00 kg | |||
|
4402003000
|
200 | 10 | Typ E3 | 695 mm | 465 mm | 540 mm | 3 | 236,00 kg | |||
|
4402004000
|
200 | 10 | Typ E3 | 695 mm | 465 mm | 540 mm | 4 | 248,00 kg | |||
|
4402012000
|
200 | 16 | Typ E3 | 695 mm | 465 mm | 540 mm | 2 | 223,00 kg | |||
|
4402013000
|
200 | 16 | Typ E3 | 695 mm | 465 mm | 540 mm | 3 | 236,00 kg | |||
|
4402014000
|
200 | 16 | Typ E3 | 695 mm | 465 mm | 540 mm | 4 | 248,00 kg |
|
Operating instructions
|
|---|
| Operating and maintenance instructions - Hawle - E2, E3 gate valve |
|
Article Nr.
|
Product description |
|---|---|
| 204-07 | Multiple base plate and surface box for Combi-III and Combi-IV gate valves "E2" |
| 212-01 | Surface box for Hawle gate valves Combi-III and Combi-IV |
| 900-00 | Rigid extension spindle for gate valve |
| 950-00 | Telescopic extension spindle |
| 952-00 | Telescopic extension spindle of stainless steel |
