Prices include factory-fitted cast iron pipe seal for gas.
-
When connecting PVC pipes, note the additional price for the GKS gas seal.
-
Surcharge PG-3 DN 80-200 (order no. 4790001003) DN 250-300 (order no. 4790003003)
450-00G

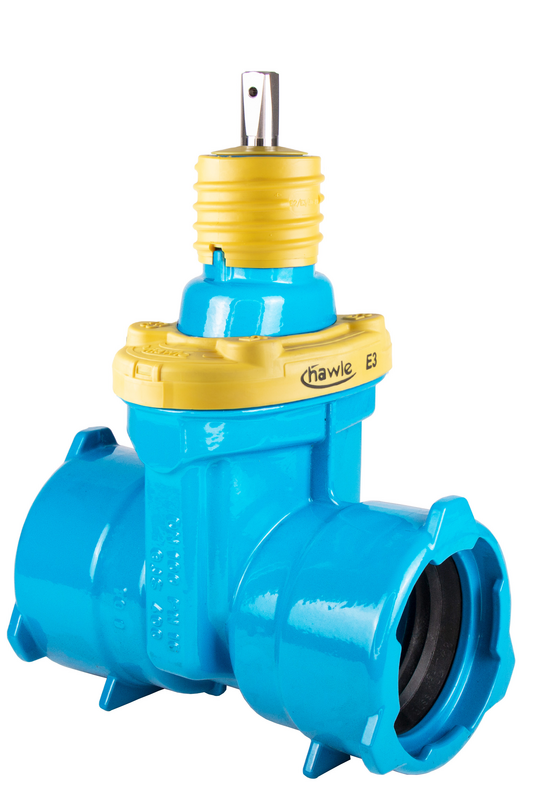

Gate valve "E3" with sockets - BAIO system for gas


Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Wedge nut: brass Wedge: GJS-400, NBR for gas Gaskets: NBR for gas Extended edge protection: PE |
---|---|
Max. operating Pressure: | Gas: 16 bar |
Medium | Gas |
Push-fit socket valve with two BAIO® double function sockets for the restraint connection with BAIO® spigot ends and for connecting DCI, steel, PE and PVC pipes.
Gaskets for the medium gas:
Gas-tight DCI pipe gasket or gas-tight GKS gasket (PVC pipe, 5 bar) required, tested PG-1 or PG-3; incl. acceptance certificate 3.1 acc. to EN 10204 for tightness and strength test performed.
Order Nr.
|
DN |
L |
A |
H |
B |
Medium | Weight | Specification | Basket |
---|---|---|---|---|---|---|---|---|---|
4500800103
|
80 | 300 mm | 17,3 mm | 385 mm | 17,50 kg | ||||
4501000103
|
100 | 300 mm | 19,3 mm | 425 mm | 210 mm | 22,50 kg | |||
4501250103
|
125 | 345 mm | 19,3 mm | 514 mm | 278 mm | 38,50 kg | |||
4501500103
|
150 | 340 mm | 19,3 mm | 541 mm | 289 mm | 38,50 kg | |||
4502500103
|
250 | 470 mm | 27,3 mm | 815 mm | 436 mm | 105,00 kg | |||
4503000103
|
300 | 537 mm | 27,3 mm | 925 mm | 520 mm | 162,00 kg |
Article Nr.
|
Product description |
---|---|
200-00 | Surface box rigid version |
207-01 | Surface box for gate valves with cover, for rolling in |
452-00 | PE fusion end incl. lock ring - BAIO® system |
452-01 | Steel fusion end incl. lock ring - BAIO® system |
527-00 | Restraint joint BAIO®-SIT |
528-00 | Hawle-Stop restraint joint for DCI, PE and PVC pipes - BAIO® system |
536-01 | Transition fitting BAIO® spigot end / ZAK® socket |
780-00 | Handwheel for gate valves and butterfly valves |
900-00 | Rigid extension spindle for gate valve |
950-00 | Telescopic extension spindle |
952-00 | Telescopic extension spindle of stainless steel |
