Pipe repair clamp for PE and PVC pipes

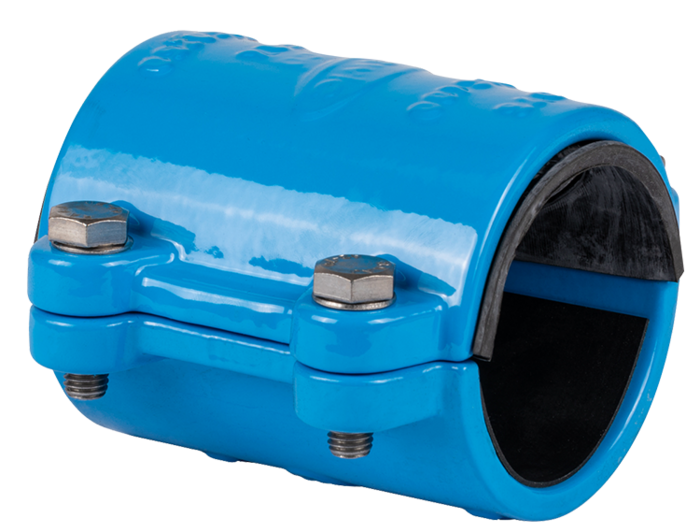

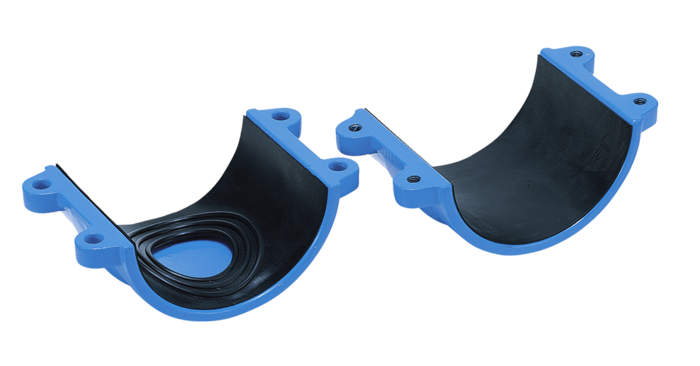

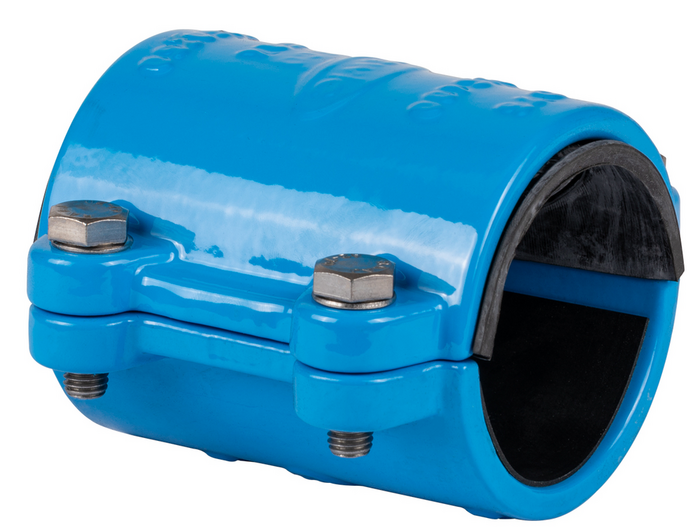

Pipe repair clamp, consisting of two half shells for closing of boreholes or for sealing minor damaged spots at PE pipes or PVC pipes. Reliable sealing via 3 o-rings (profile gasket). Standard version for water.

Prior to installing the pipe repair clamp make sure to clean the pipe surface. Subsequently put the two half shells around the pipe and connect them with the supplied hexagon head screws.

The hexagon head screws shall be tightened evenly and crosswise to metal stop at the subsequent torque
:

Screw tightening torques:
d 75 - d 140 = max. 32 Nm
d 160 – d 225 = max. 56 Nm
d 250 - d 280 = max. 130 Nm

NOTE: pipe repair clamps cannot be used to establish restraint connections!

Gas use: only for existing PVC lines up to a maximum operating pressure of 5 bar

read more reduce
Material: Upper/lower shell: GJS-400, Hawle epoxy powder coated
Gaskets: standard EPDM (water), NBR (gas)
Max. operating Pressure: Sewage water: 16 bar
Gas: 5 bar (only PVC)
Potable water: 16 bar
Medium Water / Gas / Sewage

Pipe repair clamp, consisting of two half shells for closing of boreholes or for sealing minor damaged spots at PE pipes or PVC pipes. Reliable sealing via 3 o-rings (profile gasket). Standard version for water.

Prior to installing the pipe repair clamp make sure to clean the pipe surface. Subsequently put the two half shells around the pipe and connect them with the supplied hexagon head screws.

The hexagon head screws shall be tightened evenly and crosswise to metal stop at the subsequent torque
:

Screw tightening torques:
d 75 - d 140 = max. 32 Nm
d 160 – d 225 = max. 56 Nm
d 250 - d 280 = max. 130 Nm

NOTE: pipe repair clamps cannot be used to establish restraint connections!

Gas use: only for existing PVC lines up to a maximum operating pressure of 5 bar

Contacts
Wish List
Order Nr.

d
Width of
half shells
Borehole max.
 Medium Weight Specification Basket
5100000630
 63 mm 100 mm 40 mm 1,70 kg
5100000750
 75 mm 120 mm 50 mm 2,30 kg
5100000900
 90 mm 120 mm 50 mm 2,70 kg
5100001100
 110 mm 120 mm 50 mm 3,05 kg
5100001250
 125 mm 120 mm 50 mm 3,70 kg
5100001400
 140 mm 120 mm 50 mm 3,90 kg
5100001600
 160 mm 120 mm 50 mm 4,50 kg
5100001800
 180 mm 120 mm 50 mm 4,60 kg
5100002250
 225 mm 120 mm 50 mm 6,50 kg
5100002800
 280 mm 180 mm 50 mm 12,50 kg
5100003150
 315 mm 180 mm 50 mm 15,40 kg
Wish List

Product numbers for gas on request - use for gas should be stated expressly!

Other nominal widths on request.
