Optional accessories: fleece wrapping strip to prevent slurry of the seepage element (order no. 490 080 0500) - price on request.
519-01

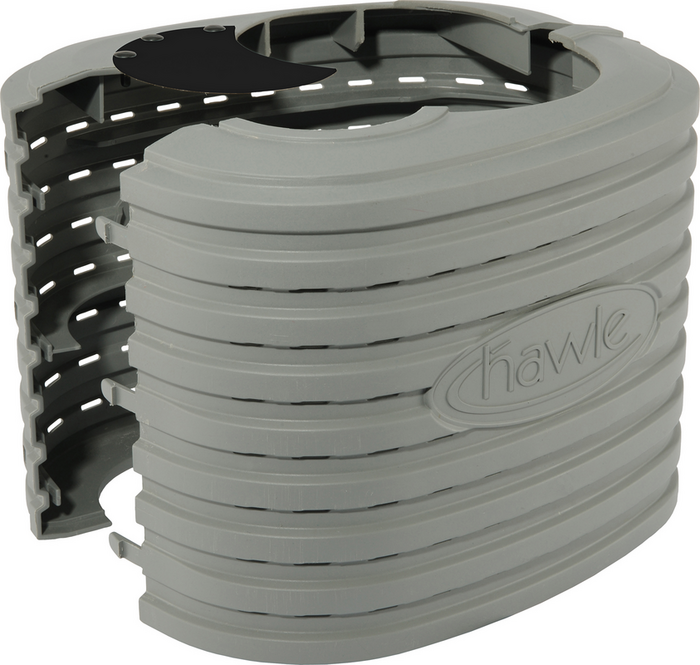

Drainage element for above ground hydrant
| Material: | PP (polypropylene) |
|---|---|
| Medium | Water |
The seepage elements for Hawle above-ground hydrants are used to absorb and slowly drain away the residual water generated during the closing process. In addition, the seepage elements protect the drainage opening from root growth. In general, drainable material should be installed around seepage elements.
For easy and quick installation, seepage elements are divided into two parts.
|
Order Nr.
|
Suitable for |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|
|
5180000400
|
1,12 kg | ||||
|
5190000600
|
Drop jacket above-ground hydrant Order No. 517-00 | 0,57 kg | |||
|
5190000610
|
Hawle H5evo® above-ground hydrant Order No. 519-03 | 0,57 kg |
|
Further information
|
|---|
| General instruction for Hydrants |
|
Operating instructions
|
|---|
| Operating and maintenance instructions - Drainage element |
