- 1)
- incl. support liner
|
Order Nr.
|
*) |
DN |
Operating pressure max. |
B |
D |

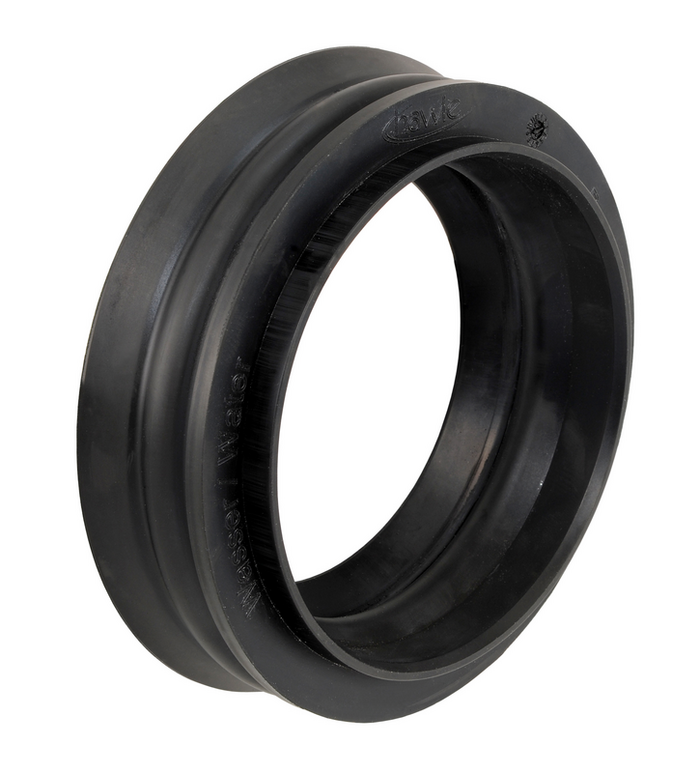

Description |
H |
Type of pipe |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5290805000
|
80 | 16 bar | 127 mm | 90 mm | BAIO Blutop gasket | 33,5 mm | BLUTOP | 0,15 kg | ||||
|
5291005000
|
100 | 16 bar | 149 mm | 110 mm | BAIO Blutop gasket | 42,5 mm | BLUTOP | 0,24 kg | ||||
|
5291255000
|
1) | 125 | 16 bar | 175 mm | 125 mm | BAIO Blutop gasket | 44 mm | BLUTOP | 0,37 kg | |||
|
5291505000
|
150 | 16 bar | 200 mm | 160 mm | BAIO Blutop gasket | 44 mm | BLUTOP | 0,36 kg | ||||
|
5297080000
|
80 | 16 bar | 90 mm | surcharge | BLUTOP | 0,00 kg | ||||||
|
5297100000
|
100 | 16 bar | 110 mm | surcharge | BLUTOP | 0,00 kg | ||||||
|
5297125000
|
1) | 125 | 16 bar | 125 mm | surcharge | BLUTOP | 0,00 kg | |||||
|
5297150000
|
150 | 16 bar | 160 mm | surcharge | BLUTOP | 0,00 kg |
-
All BAIO® sockets are equipped with BAIO® lip gasket (BLD®) for water
-
The surcharges quoted in the table include factory-mounted BAIO® Blutop gaskets, on the one hand, and the extra charge for BLD®, on the other hand.
|
Further information
|
|---|
| General instruction for restraints, gaskets, grip rings, twist lock device |
|
Operating instructions
|
|---|
| Operating and maintenance instructions - BAIO® - System |
