540-01

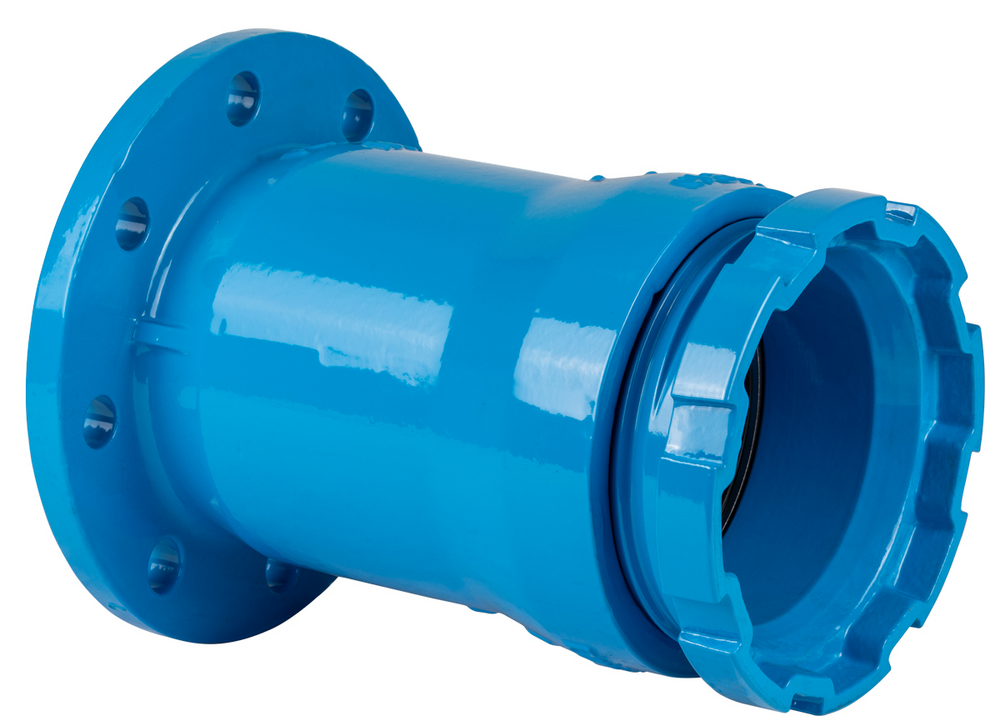

Flanged screw socket for DCI pipes
| Material: |
Body / screw ring: GJS-400, Hawle epoxy powder coated Gasket: EPDM acc. to KTW-BWGL for water |
|---|---|
| Max. operating Pressure: |
Sewage water: 16 bar Potable water: 16 bar |
| Medium | Water / Sewage |

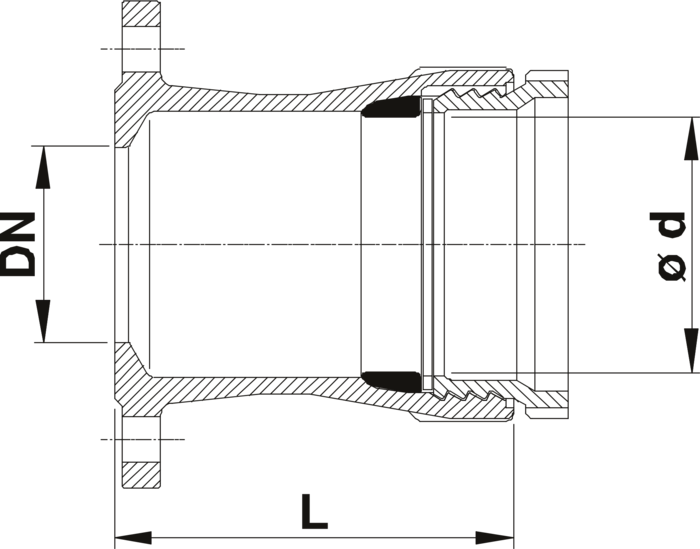

Flanged socket, with one flange acc. to EN 1092-2, and with one screw socket.
|
Order Nr.
|
DN |
Operating pressure max. |
PN |
d |
L |
For type of pipe |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
5409100000
|
100 | 16 bar | 10/16 | 118 mm | 220 mm | Cast Iron | 11,60 kg | |||
|
5409150000
|
150 | 16 bar | 10/16 | 170 mm | 230 mm | Cast Iron | 19,20 kg |
|
