- Please specify PN of flanges - standard is PN 10
560-00

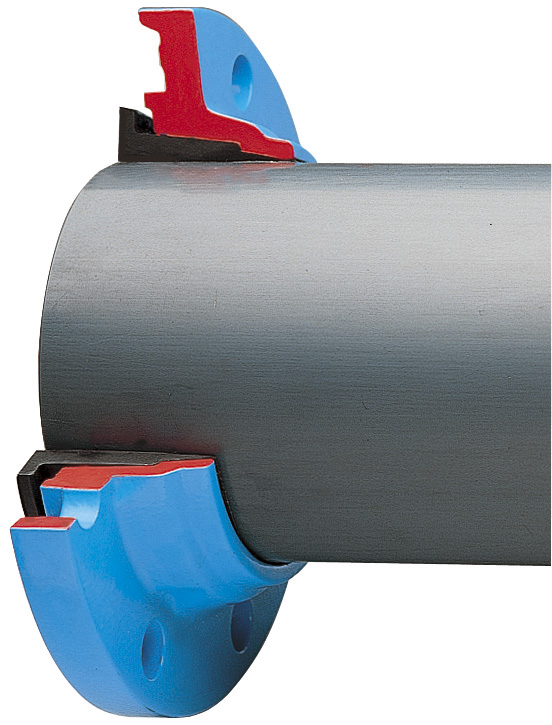

Double chamber flange for PVC pipes
| Material: |
Flange: GJL-250, Hawle epoxy powder coated Gasket: elastomer |
|---|---|
| Max. operating Pressure: | See table |
| Medium | Water / Sewage |
Double chamber flange with integral flat gasket for PVC pipes.
For required bolt lengths see "Technical description".
Please note: no restraint connection!
|
Order Nr.
|
*) |
DN |
Operating pressure max. |
PN |
d |
L |
For type of pipe |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5600900000
|
80 | 16 bar | 10/16 | 90 mm | 60 mm | PVC | 3,20 kg | ||||
|
5601100000
|
100 | 16 bar | 10/16 | 110 mm | 60 mm | PVC | 4,30 kg | ||||
|
5601600000
|
150 | 16 bar | 10/16 | 160 mm | 65 mm | PVC | 6,80 kg | ||||
|
5602800000
|
1) | 250 | 10 bar | 10 | 280 mm | 115 mm | PVC | 14,70 kg |
|
Further information
|
|---|
| General instruction for Pipe Fittings, Connection technology, Pipe coupling |
