616-06
ZAK-Press-Fit® K
| Material: |
Geopress K Housing: PA-GF Clamping ring, snap ring: POM Protective cap: PE Connector: Silicon Bronze O-ring: EPDM according to KTW-BWGL for water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |

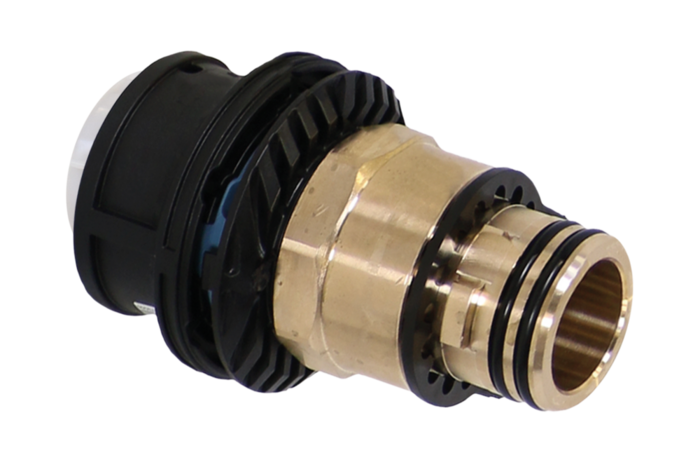

The ZAK-Press-FIT® K-Fittting with ZAK® tip end serves as a transition from the Viega Geopress K-System to the Hawle ZAK-System®.
On the one hand, with ZAK® tip end for a form-fitting connection with ZAK® tapping fittings, and on the other hand, with Viega Geopress K-socket for the connection of PE pipes SDR 11 according to DIN EN 12201/DIN 8074 and PE-X pipes SDR 11 according to DIN 16893.
No separate support sleeve is required for the ZAK-Press-FIT® K system, as this is already integrated in the transition piece (connector).
For underground pipeline construction and distribution systems in the drinking water supply. No application in the installation.
|
Order Nr.
|
L |
L1 |
B |
H |
Outlet O |
D |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
6164032046
|
127 mm | 120 mm | 60 mm | 64 mm | ZAK 46 | 32 mm | 0,00 kg | |||
|
6164040046
|
137 mm | 128 mm | 70 mm | 70 mm | ZAK 46 | 40 mm | 0,00 kg | |||
|
6164050046
|
150 mm | 140 mm | 87 mm | 87 mm | ZAK 46 | 50 mm | 0,00 kg | |||
|
6164063046
|
169 mm | 152 mm | 97 mm | 97 mm | ZAK 46 | 63 mm | 0,00 kg |
|
