618-00G
ZAK® PE fusion end for gas


Material: |
GJS-400, Hawle epoxy powder coated Outlet: PE 100 Gasket: NBR for gas |
---|---|
Max. operating Pressure: | Gas: 10 bar |
Medium | Gas |

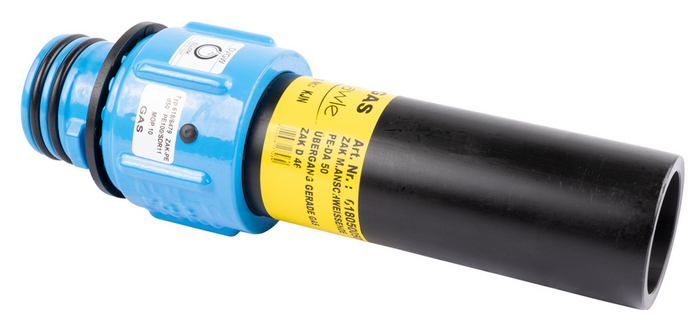

ZAK-PE end straight as transition from Hawle ZAK® system to PE pipelines. For underground pipeline construction and in distribution systems gas supply. No application in installation.
Can be used for PE pipes (DIN 8074/EN 12201). On the one hand with ZAK® spigot end for positive connection of fittings and fittings with ZAK® socket, on the other hand with PE end (SDR 11) made of PE 100 according to DIN 8074/EN 12201.
Order Nr.
|
Type / Outlet |
L |
B |
D |
H |
Outlet O |
Medium | Weight | Specification | Basket |
---|---|---|---|---|---|---|---|---|---|---|
6180320321
|
PE 100 | 212 mm | 51 mm | 32 mm | 52 mm | ZAK 34 | 0,50 kg | |||
6180320501
|
PE 100 | 200 mm | 58 mm | 32 mm | 64 mm | ZAK 46 | 0,60 kg | |||
6180400321
|
PE 100 | 212 mm | 59 mm | 40 mm | 54 mm | ZAK 34 | 0,60 kg | |||
6180400501
|
PE 100 | 202 mm | 60 mm | 40 mm | 64 mm | ZAK 46 | 0,60 kg | |||
6180500501
|
PE 100 | 224 mm | 70 mm | 50 mm | 70 mm | ZAK 46 | 0,90 kg | |||
6180630501
|
PE 100 | 232 mm | 83 mm | 63 mm | 78 mm | ZAK 46 | 1,20 kg |
Operating instructions
|
---|
Operating and maintenance instructions - ZAK® PE fusion end / ZAK® PE fusion end 90° |
