630-01G

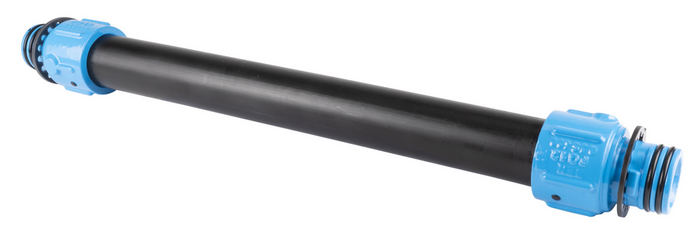

Connector (S-fitting) with two ZAK® spigot ends for gas

6306504647

Product: Hawle (Ord. No. 630-01G) or equivalent
Connector with two ZAK spigot ends and locking rings to establish form-locked connections with valves and pipe fittings with ZAK sockets (e.g. as an extension piece for the installation of service valves to BAIO duckfoot bends with ZAK outlets, test regulations: DVGW VP 600, DIN 8076.

Material: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476 (P) and DIN 30677-2 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 16 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute)

Medium: gas
Max. operating pressure: gas 10 bar
